New Evolution of our 1″ exit neodymium bullet tweeters!
 Smaller – Motor has been re-designed to be more compact on its total mounting depth.

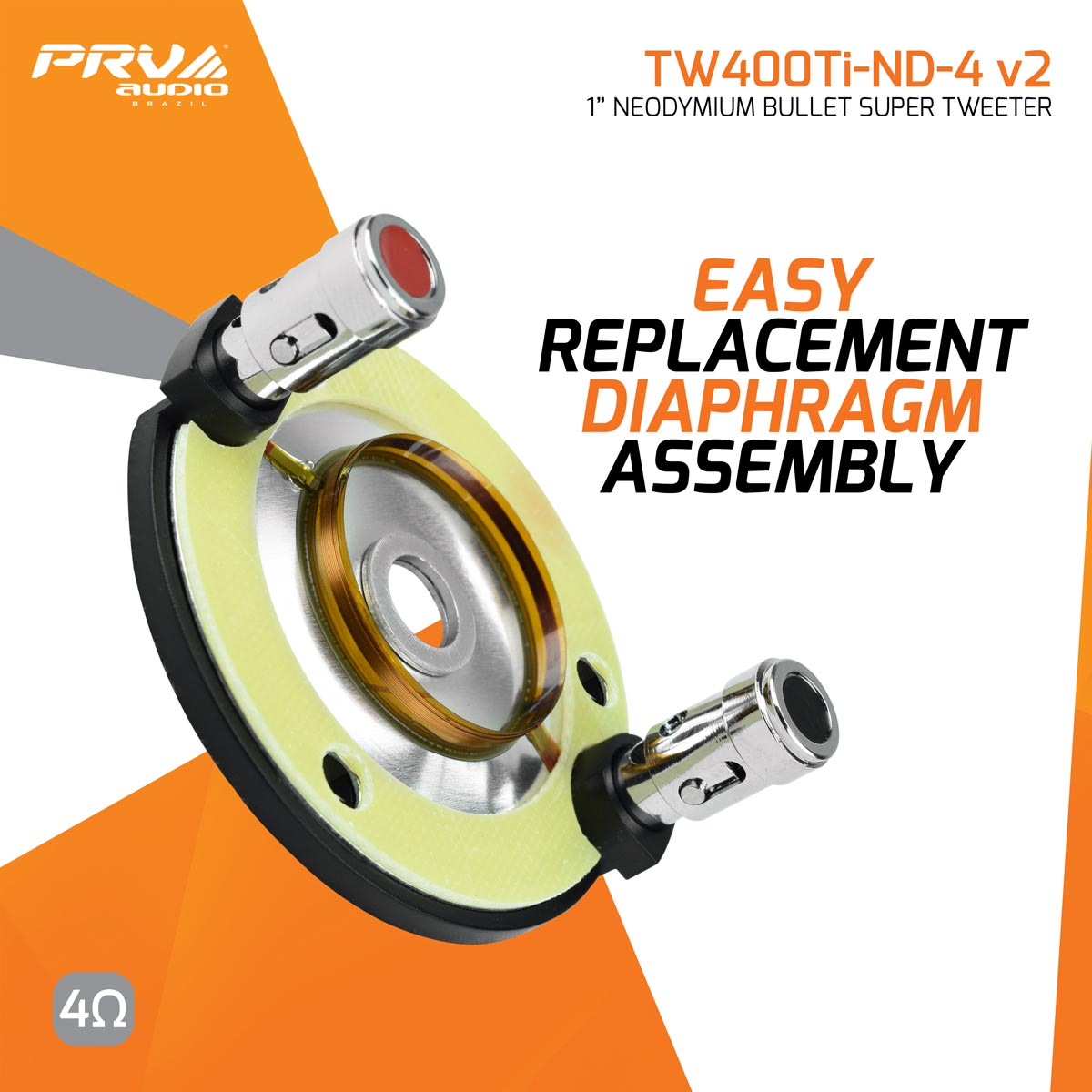

 Improved Designed – Featuring a new concept, easy to replace diaphragm ( solderless )

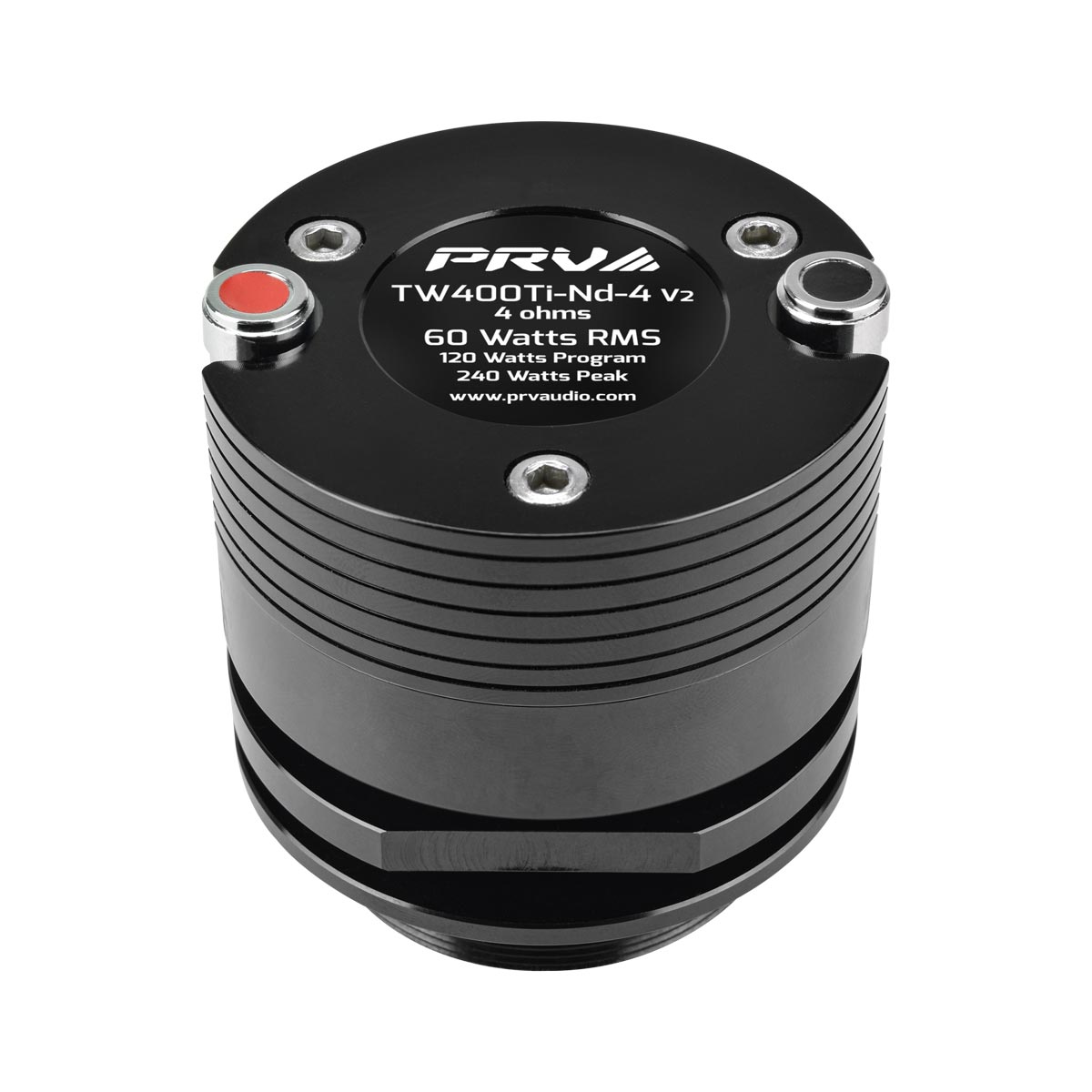

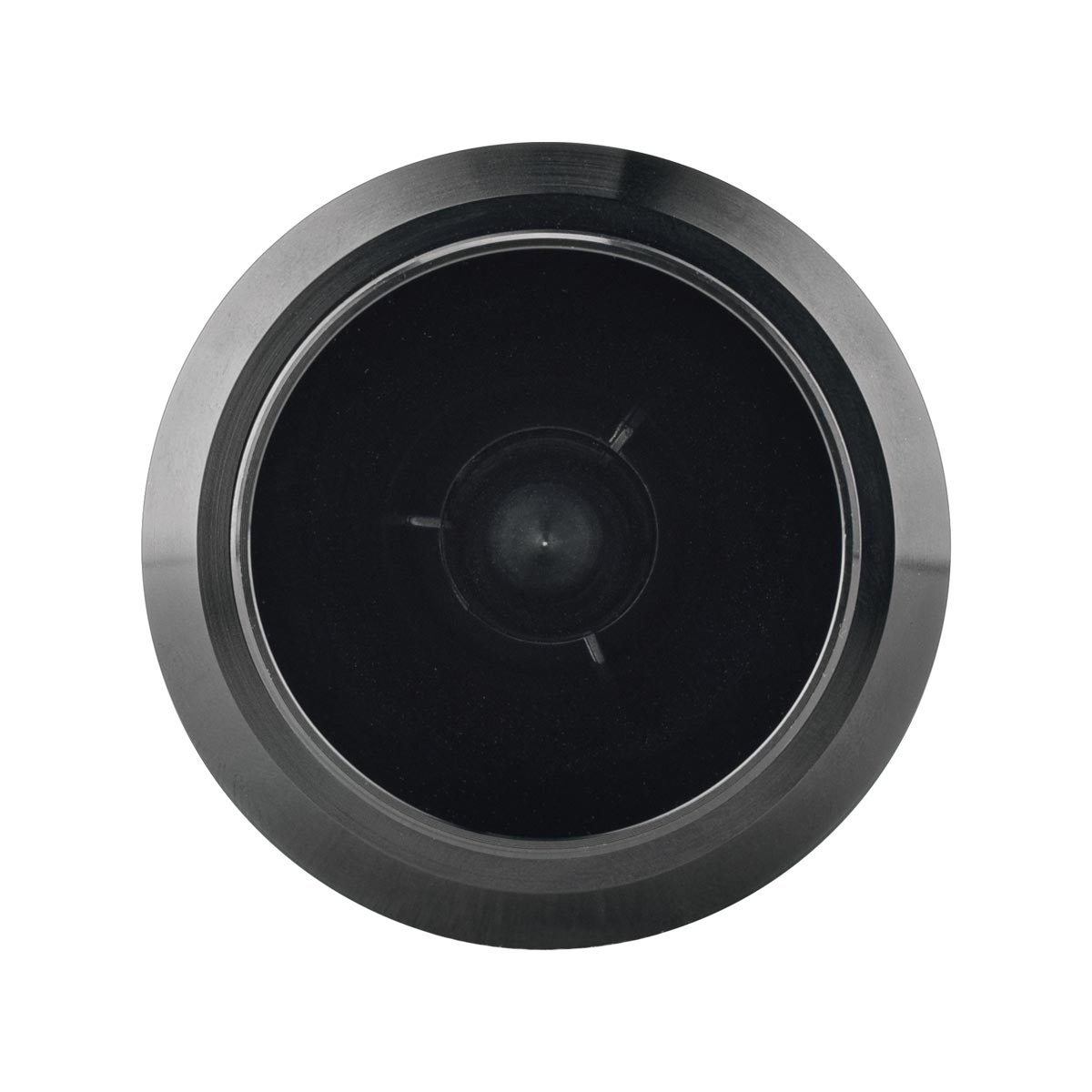

TW400Ti-Nd-4 v2 (PAIR)

PRV Audio’s TW400Ti-Nd-4 v2 super tweeter (also referred to as a bullet tweeter) is designed to add high output, high frequency response to any speaker system. The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 106 dB from 4,500 to 20,000 Hz.

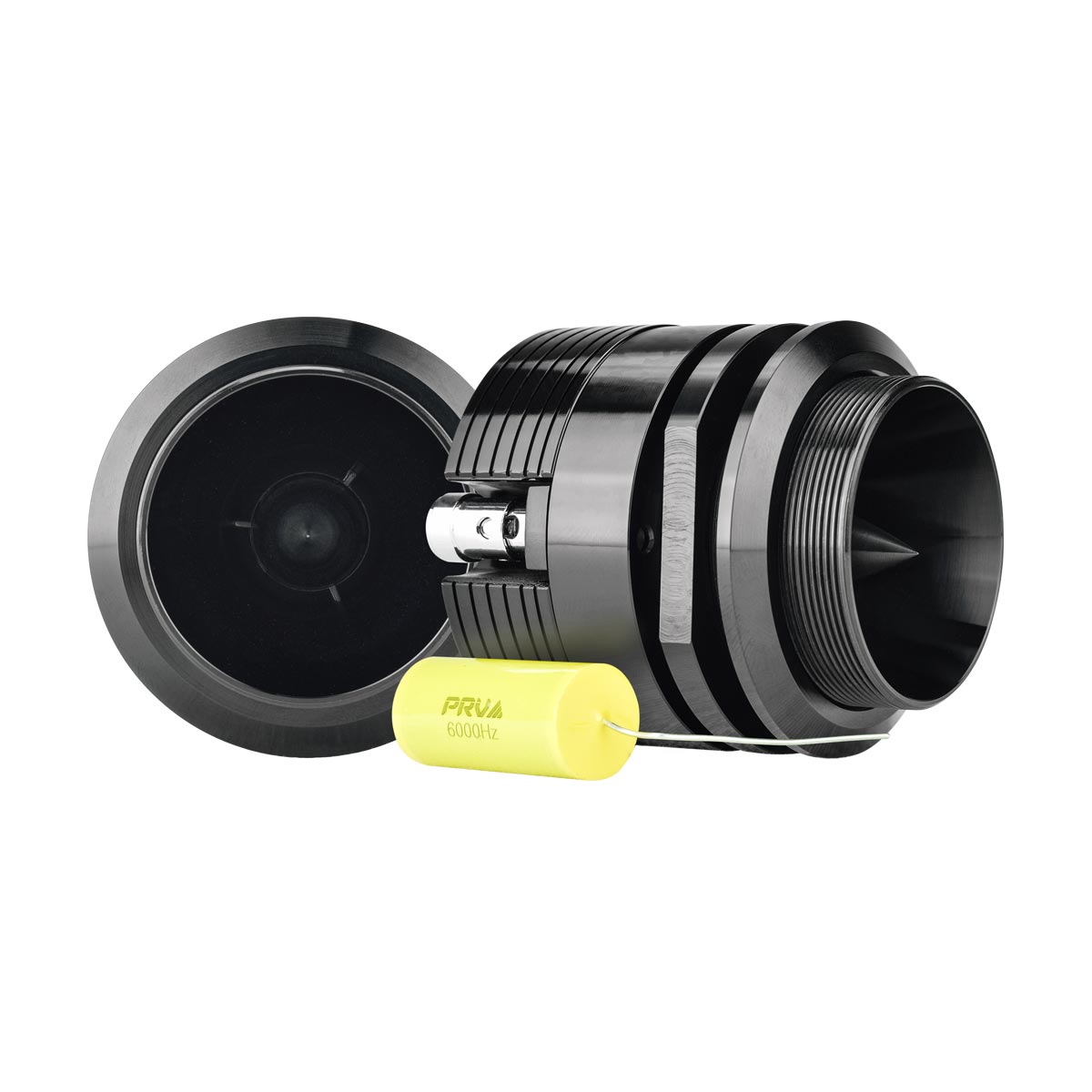

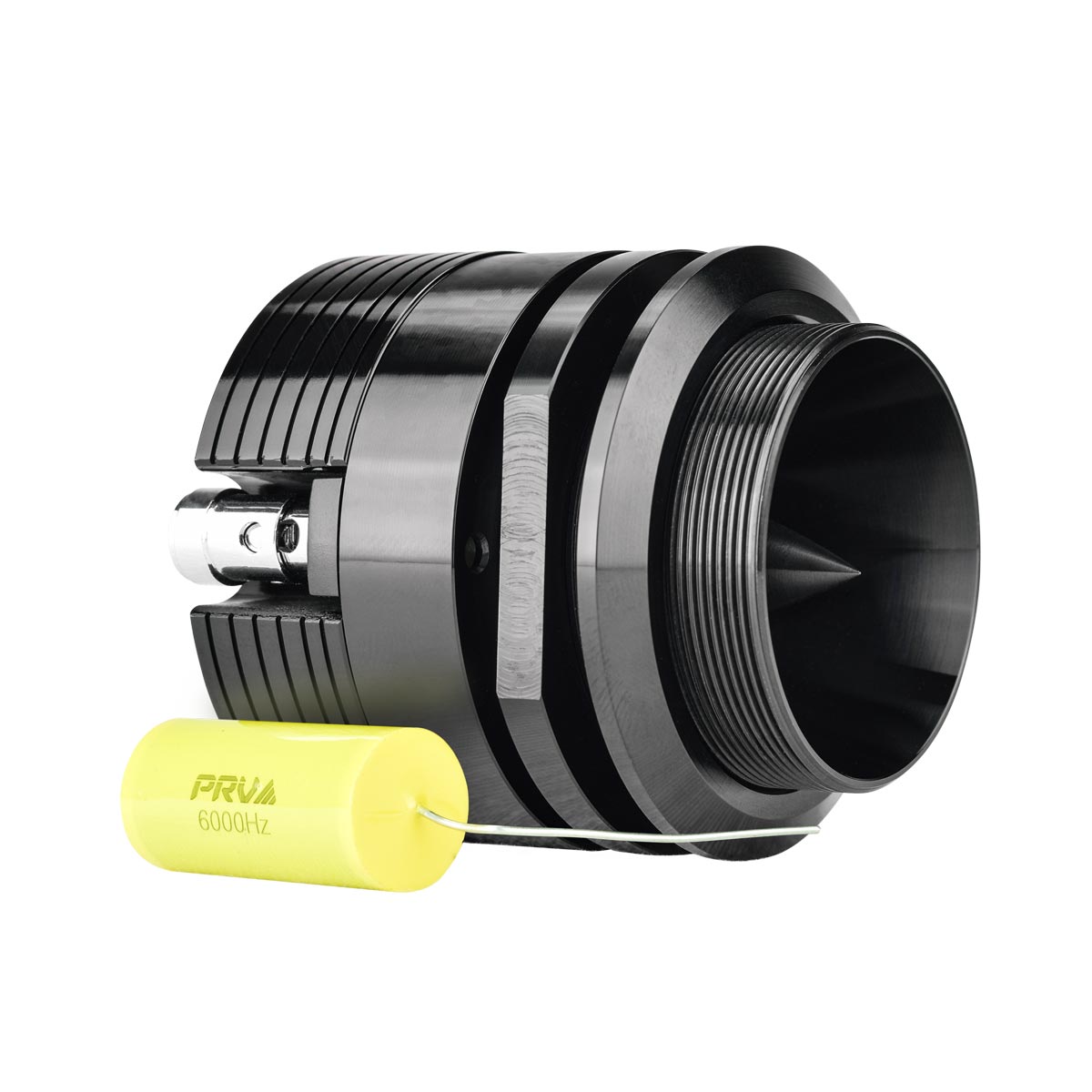

Not only does this driver look as good as it sounds, it is also able to take a ton of power! Up to 120 watts of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems. A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included.

Add detail to any speaker with PRV Audio’s TW400Ti-Nd-4 v2 titanium bullet super tweeter!



  • 1″ Bullet Super Tweeter
  • Nominal Impedance: 4Ω
  • Titanium diaphragm for an accurate and detailed response
  • Screw fittings make rear mounting easy and simple
  • Voice Coil Diameter: 1″

Technical Details


Nominal impedance 4 Ohms
Rated AES Power Handling (RMS) 60 Watts
Program Power 120 Watts
Sensitivity 2.00V at 1m 106 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
6000 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 4,500 – 20,000 Hz
Voice Coil Diameter 1.0”(25.4 mm)
Voice Coil Wire Aluminum
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 1.45 T
Magnet Material Neodymium

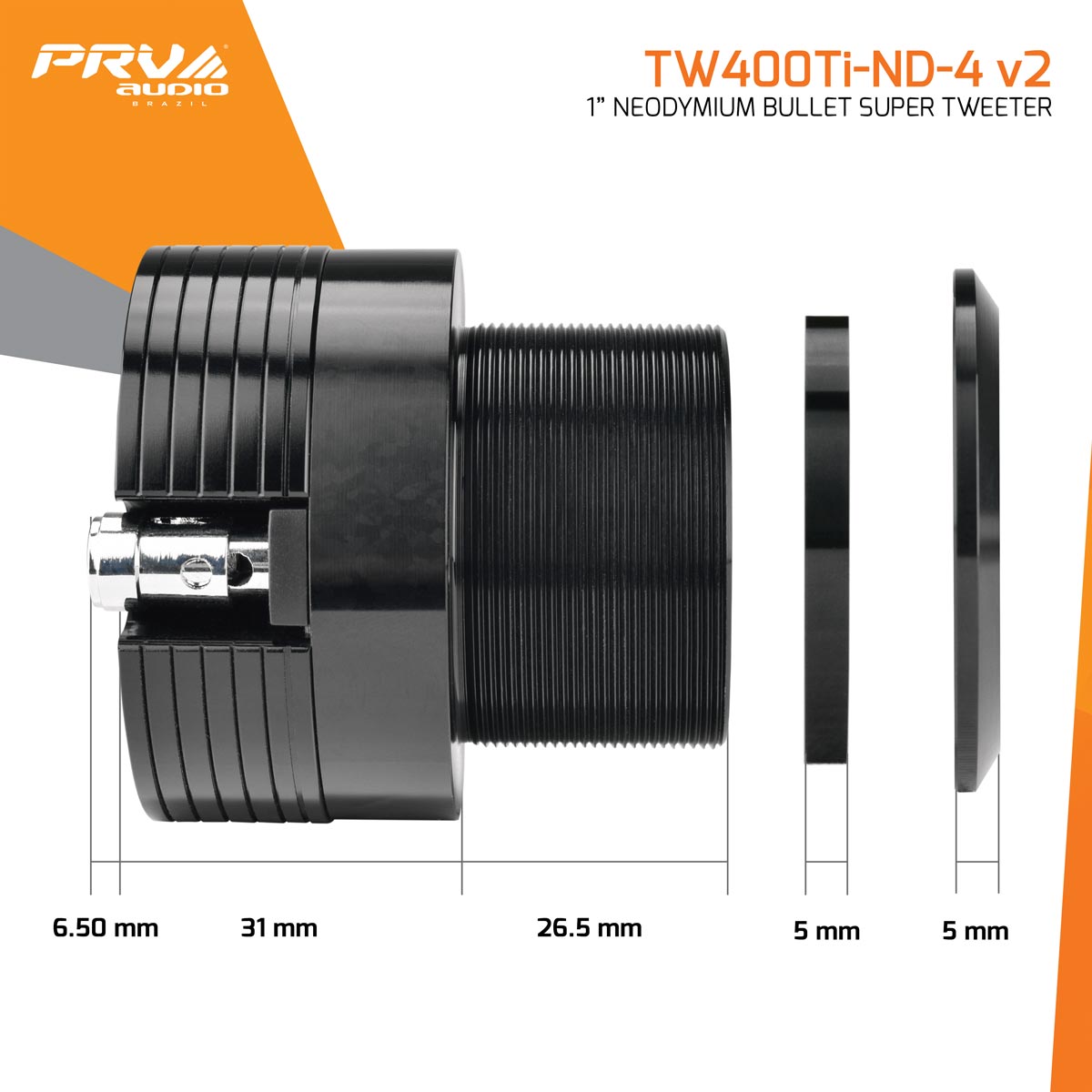

Overall Depth 2.58” (65.5 mm)
Mounting Depth 1.51” (38.5 mm)
Overall Diameter 2.19” (55.7 mm)
Cutout Diameter 1.69” (43 mm)
Net Weight 0.72 lbs (0.33 kg)
Shipping Weight 2.14 lbs (0.97 kg)
Carton Dimensions W x L x H 6.02” x 3.26” x 3.54”
(153 x 83 x 90 mm)
