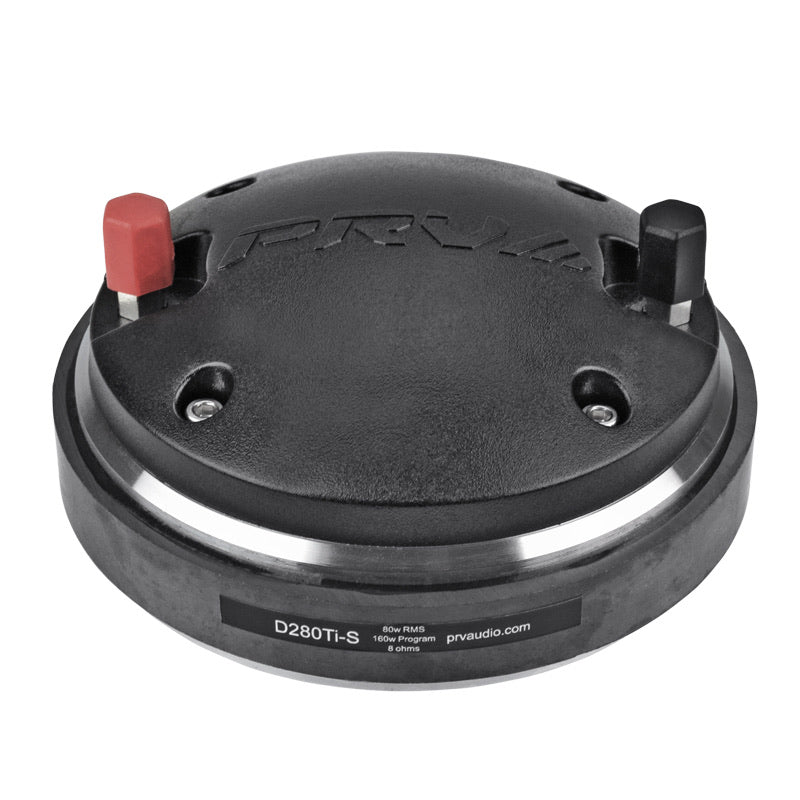

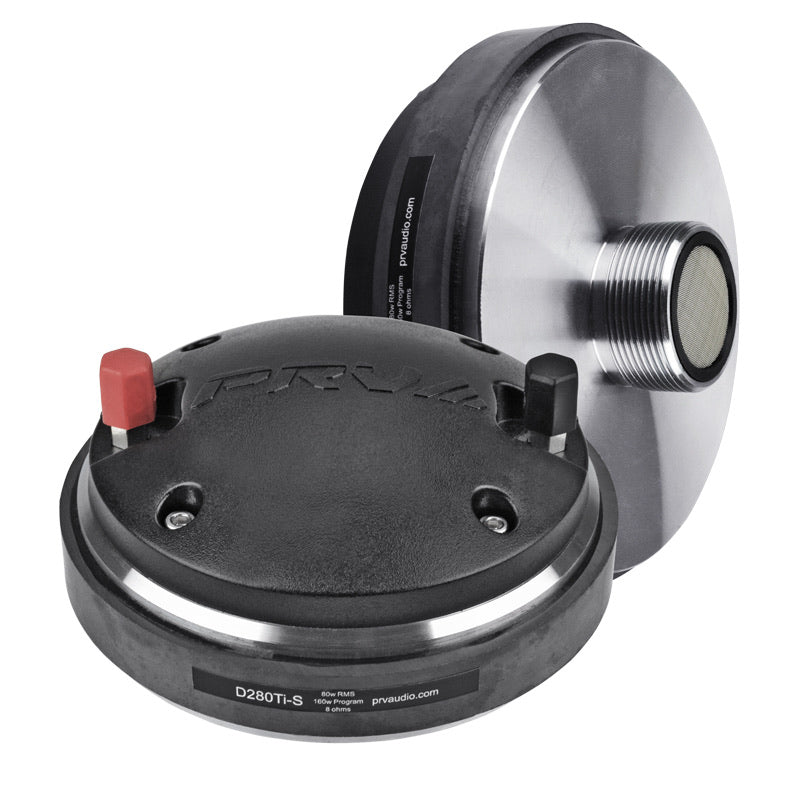

PRV D280Ti-S Compression Driver (price per piece)
The NEW PRV Audio D280Ti-S Compression Driver offers a surprisingly smooth response and high efficiency from mid-range through high range frequencies thanks to the pure titanium diaphragm.
- Throat Diameter: 1″
- Type: Screw-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 80 Watts
- Program Power: 160 Watts
Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required. A 2 and 3 or bolt pattern ensures easy replacement with current 1” bolt-on horns and weighs just 3.3 lbs. A standard 1 3/8” screw ensures easy replacement with current 1” horns and weighs just 3.3 lbs.
D280Ti-B and D280Ti-S is designed to ensure a quality sound and long lasting play in most any environment and in the rare event you need to make a repair to your driver, simple, quick diaphragm replacements are available.
|Exit Throat Diameter||1” (25.4mm)|
|Nominal impedance||8 Ohms|
|Rated AES Power Handling (RMS)||80 Watts|
|Program Power||160 Watts|
|Sensitivity 2.83V at 1m||109 dB|
|Recommended Hi Pass Crossover** **For Full Power Handling||1800 Hz** **12db Per Octave Crossover|
|Frequency Response at -10dB||1,300 – 20,000 Hz|
|Voice Coil Diameter||1.75”(44.4 mm)|
|Voice Coil Wire||CCAW|
|Voice Coil Former Material||Kapton|
|Flux Density||1.65 T|
