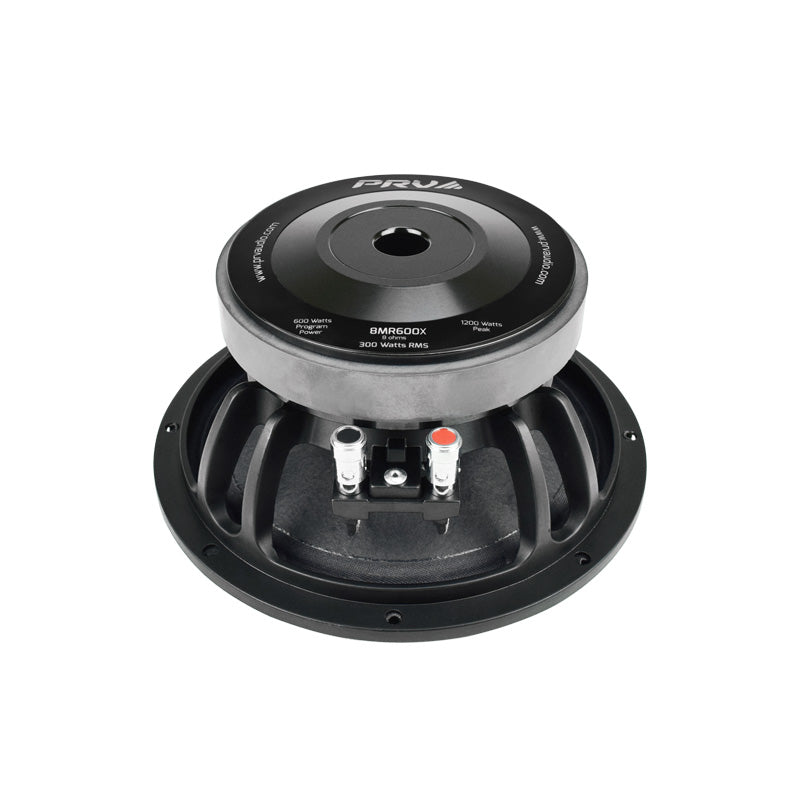

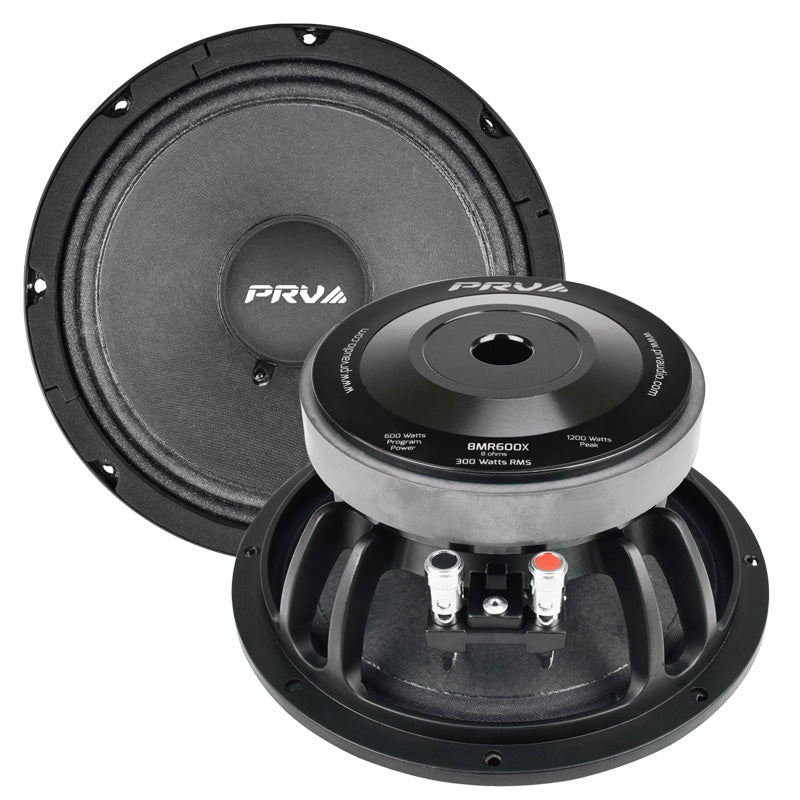

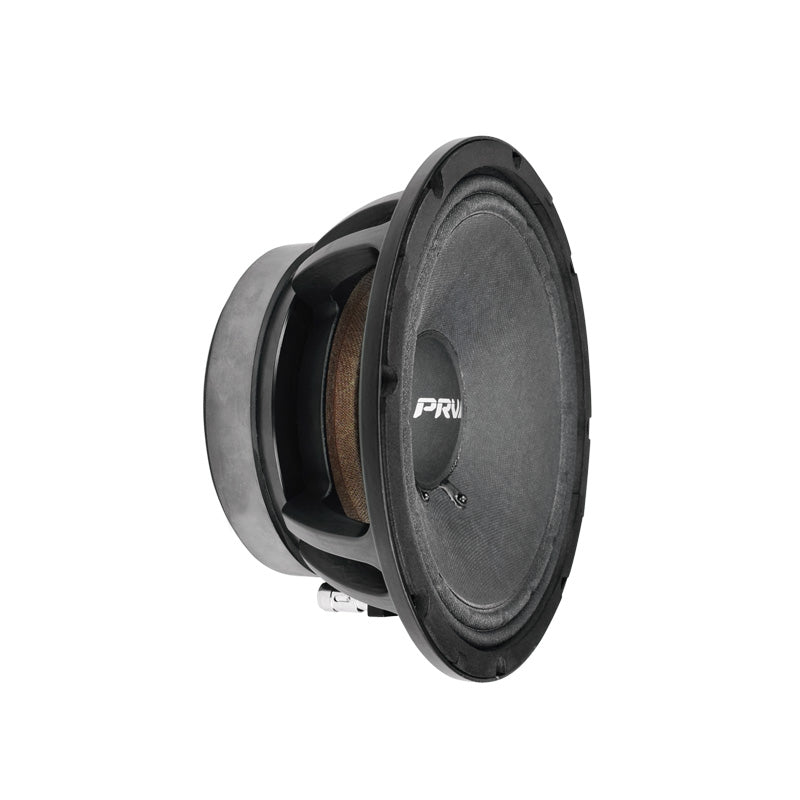

PRV 8MR600X Mid Range

• 300 Watts continuous power handling • 98 dB Sensitivity
• 85 - 8,500 Hz of frequency response

8” (203 mm) 8 Ohms300 Watts600 Watts98 dB

Nominal Diameter
Nominal impedance
Rated Power Handling
Program Power
Sensitivity 2.83 V at 1m
Recommended Hi Pass Crossover* 160 Hz*

*For Full Power Handling

Frequency Response at -10dB

Voice Coil Diameter Voice Coil Wire
Voice Coil Winding Depth Former Material Magnetic Gap Depth Frame Material

*12db Per Octave Crossover

85 - 8,500 Hz

2.0” (51 mm) CCAW
14.5 mm Polyimide 8.0 mm

Die cast aluminum
