PRV 6M5250B-4 SLIM
PRV
$39.91 $49.89

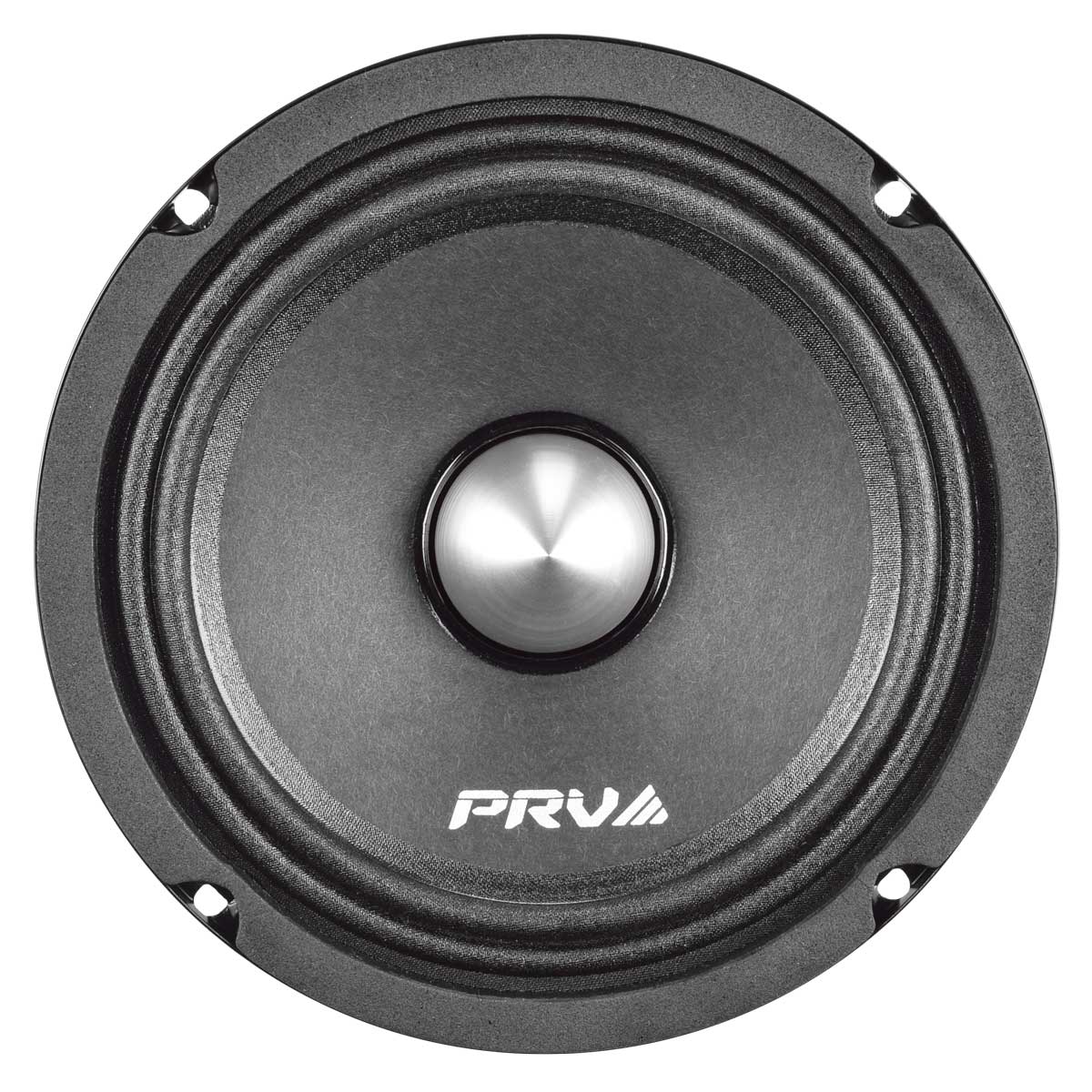

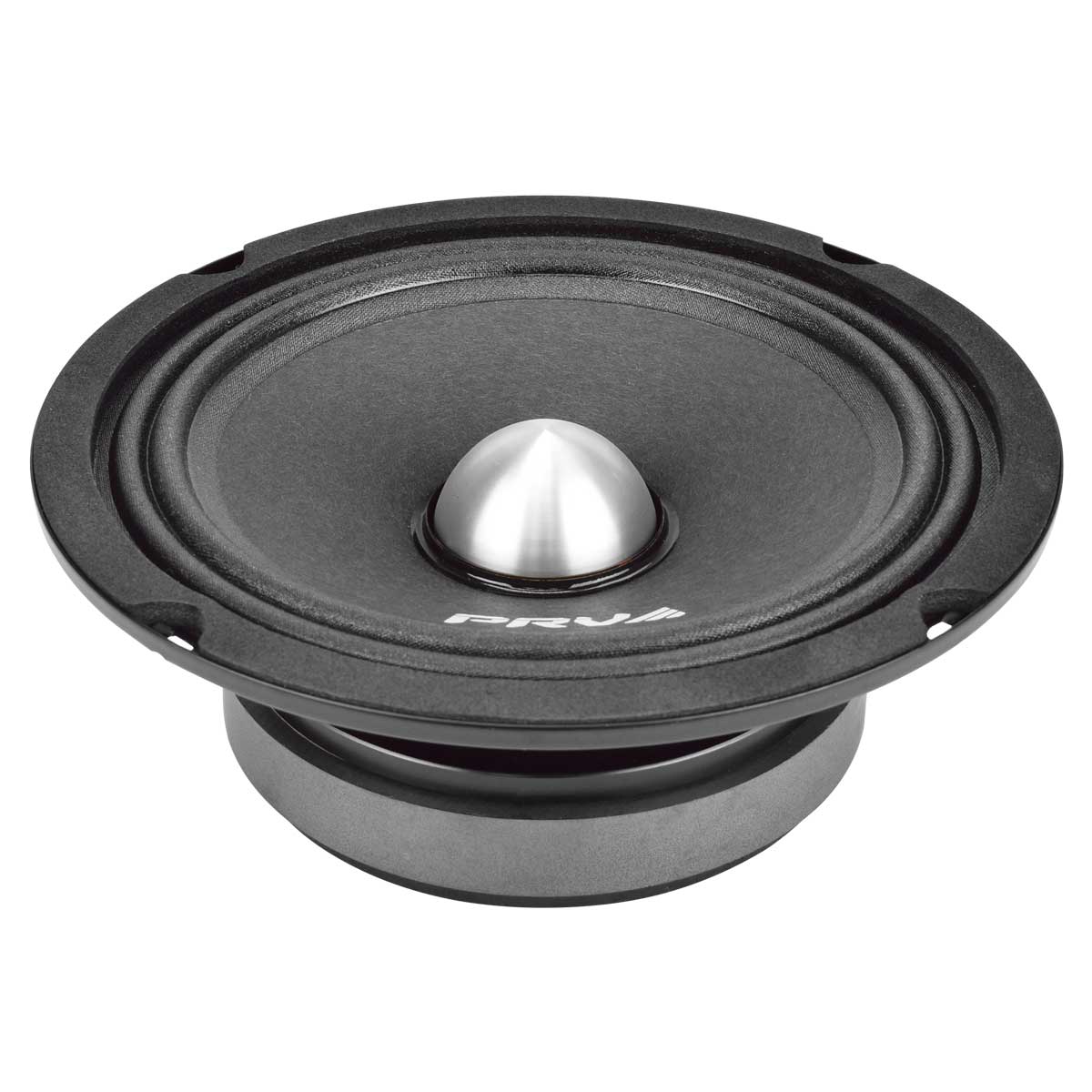

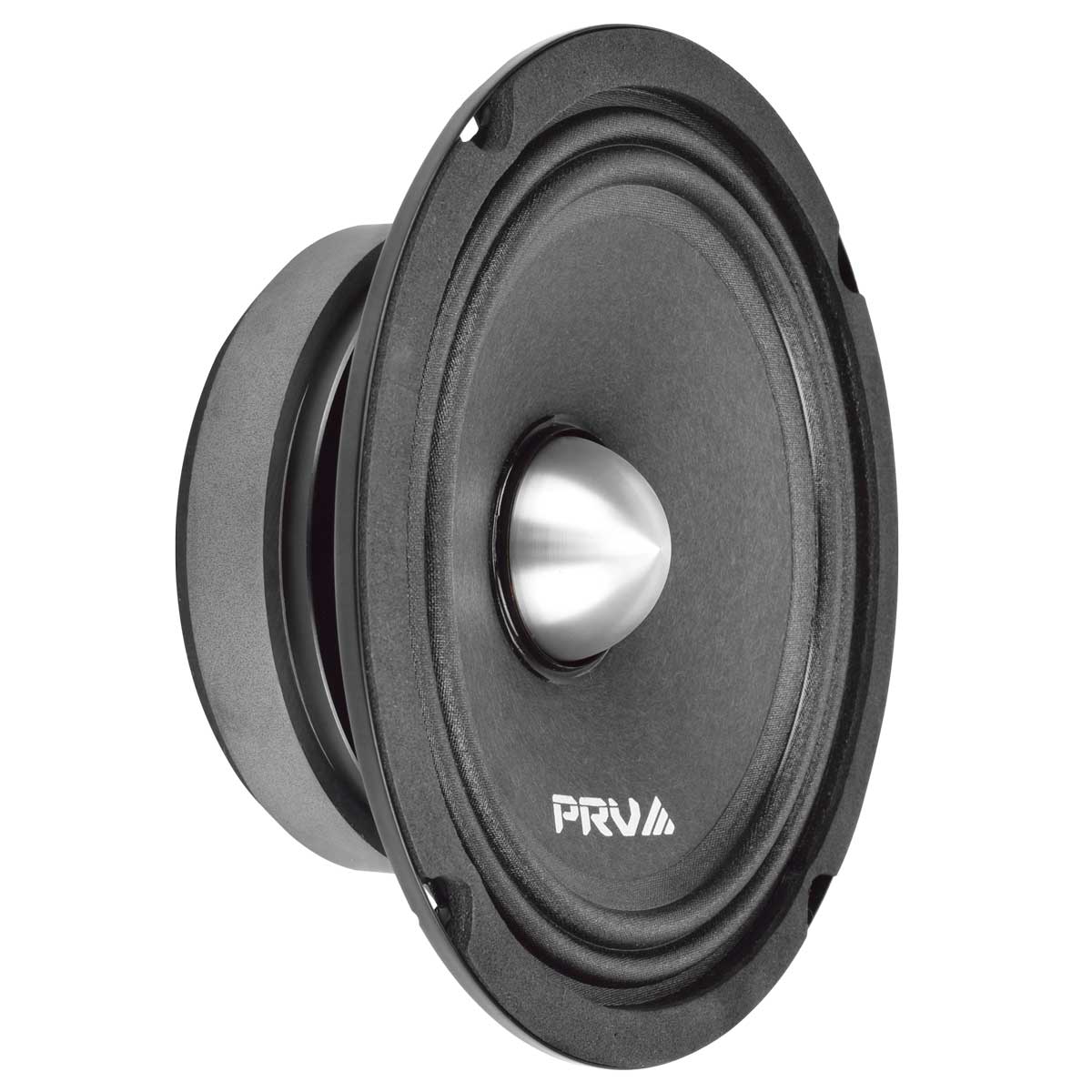

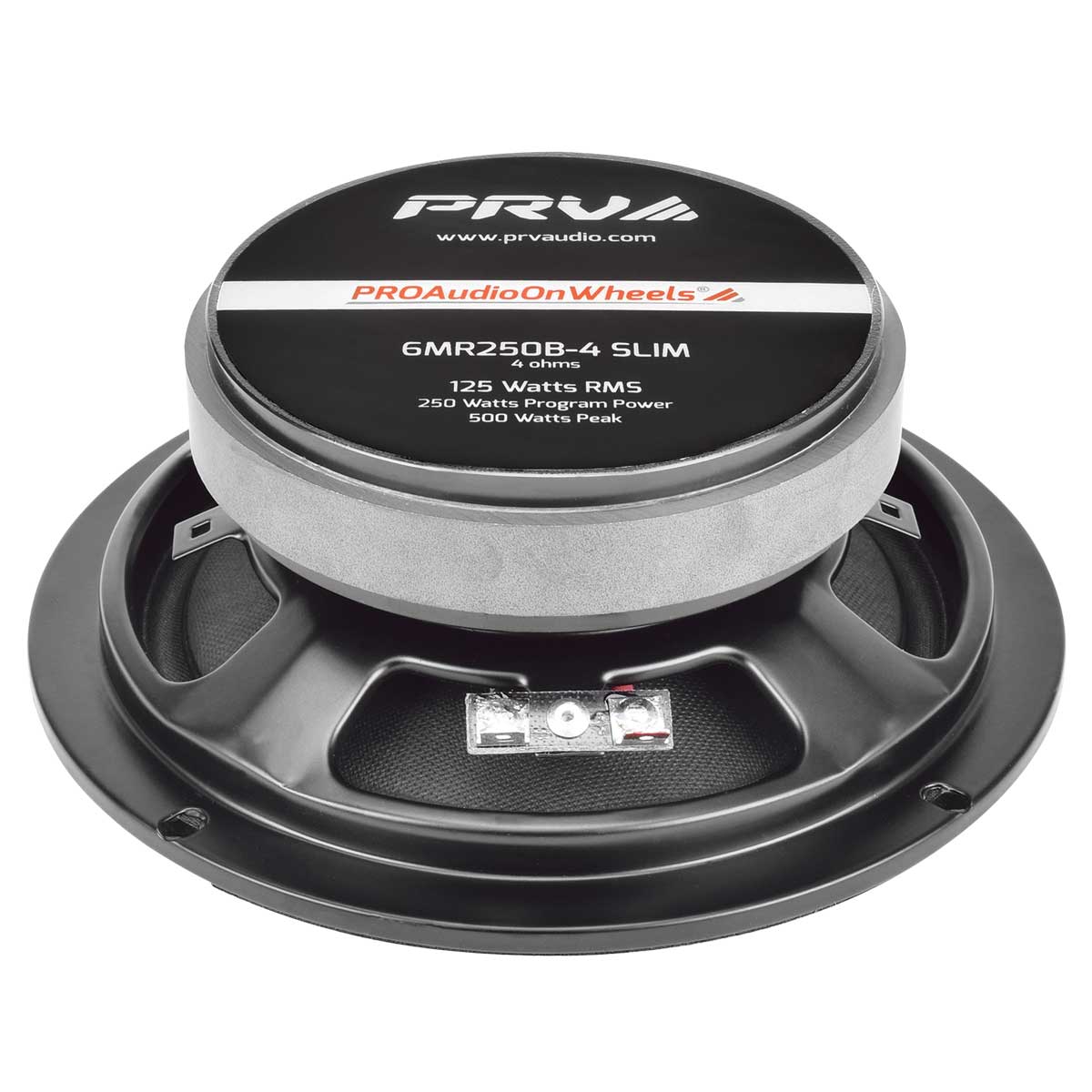

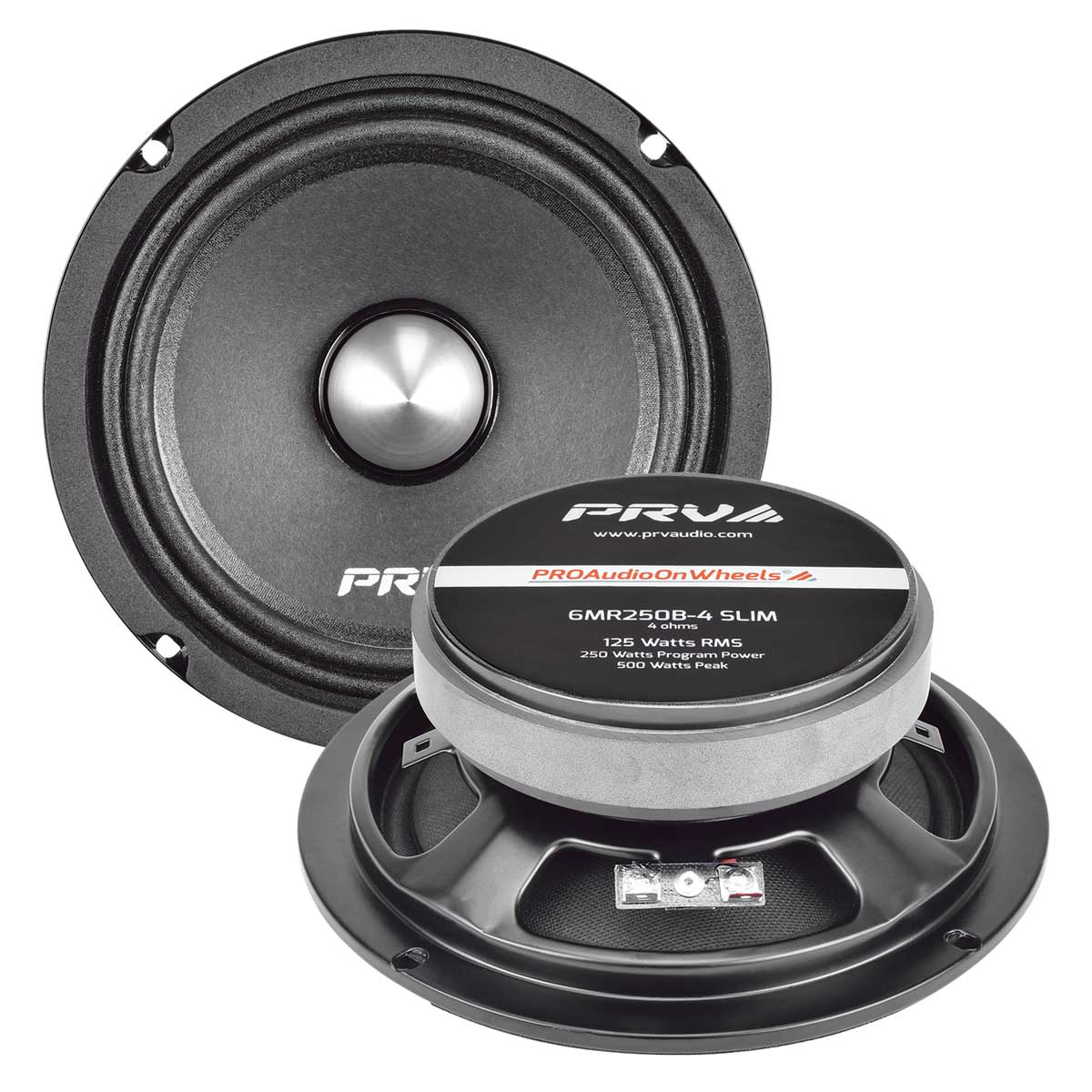

6.5" Mid Range Bullet Slim Loudspeaker (Sold In Singles)
The MR SLIM series was designed as PRO Audio On Wheels solution for shallow doors, featuring an Aluminum Phase Plug (Bullet). This mid is built like a professional mid range loudspeaker, but it has been designed for use in the mobile audio market.
By combining elements from PRO Audio and Car Audio we have developed a NEW type of high efficient mid range that is able to give high levels of output from stock speaker location in your car.
Highlights

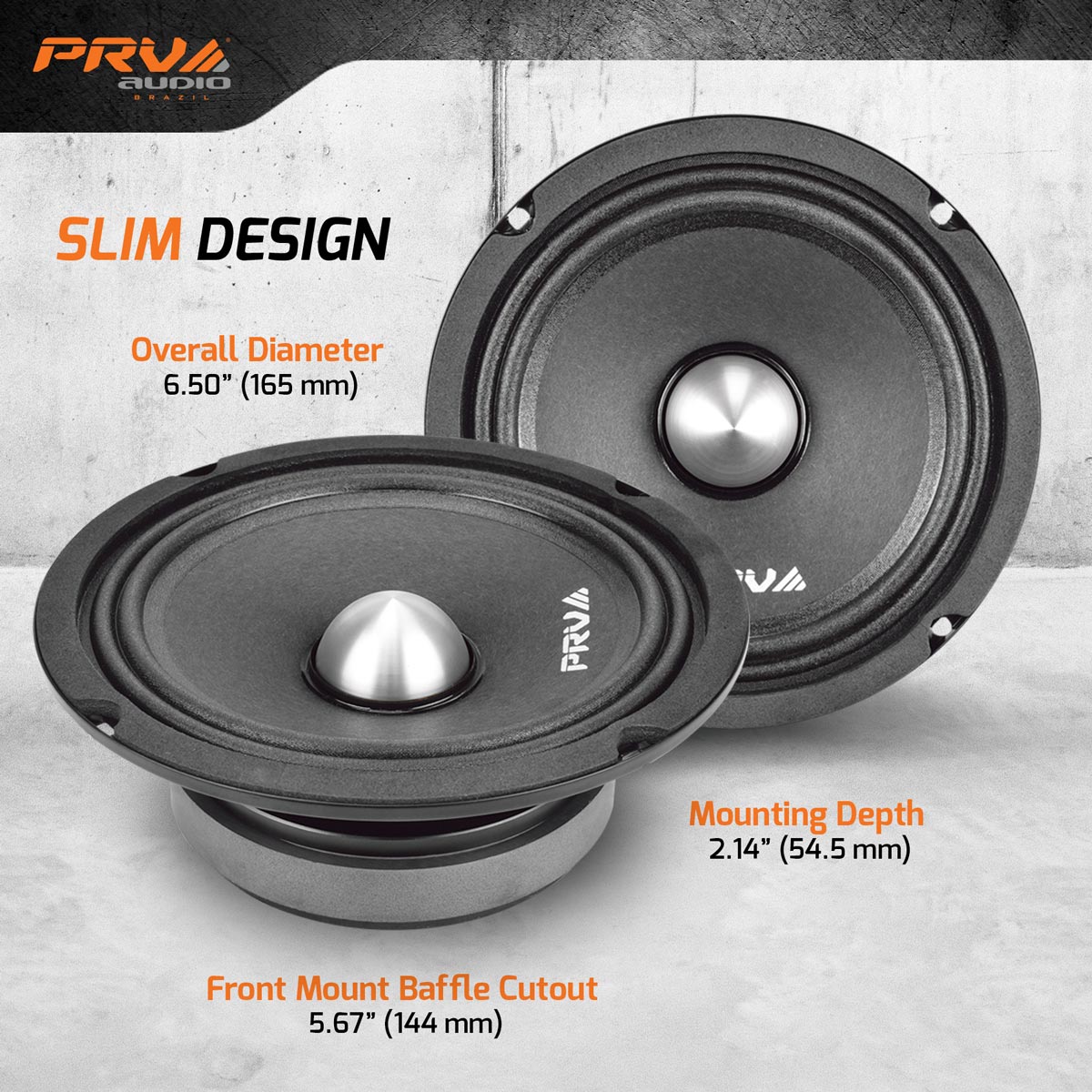

- Slim Design – Perfect for door stock location
- Sound Quality without Cutting up interior Panels
- Endurance at Loudest Volumes
- Vented Air pole piece for heat dissipation
- Center phase plug for even sound distribution
- 4 Ohms Impedance
GENERAL SPECIFICATIONS
Nominal Diameter | 6″ (152 mm) |
Nominal impedance | 4 Ohms |

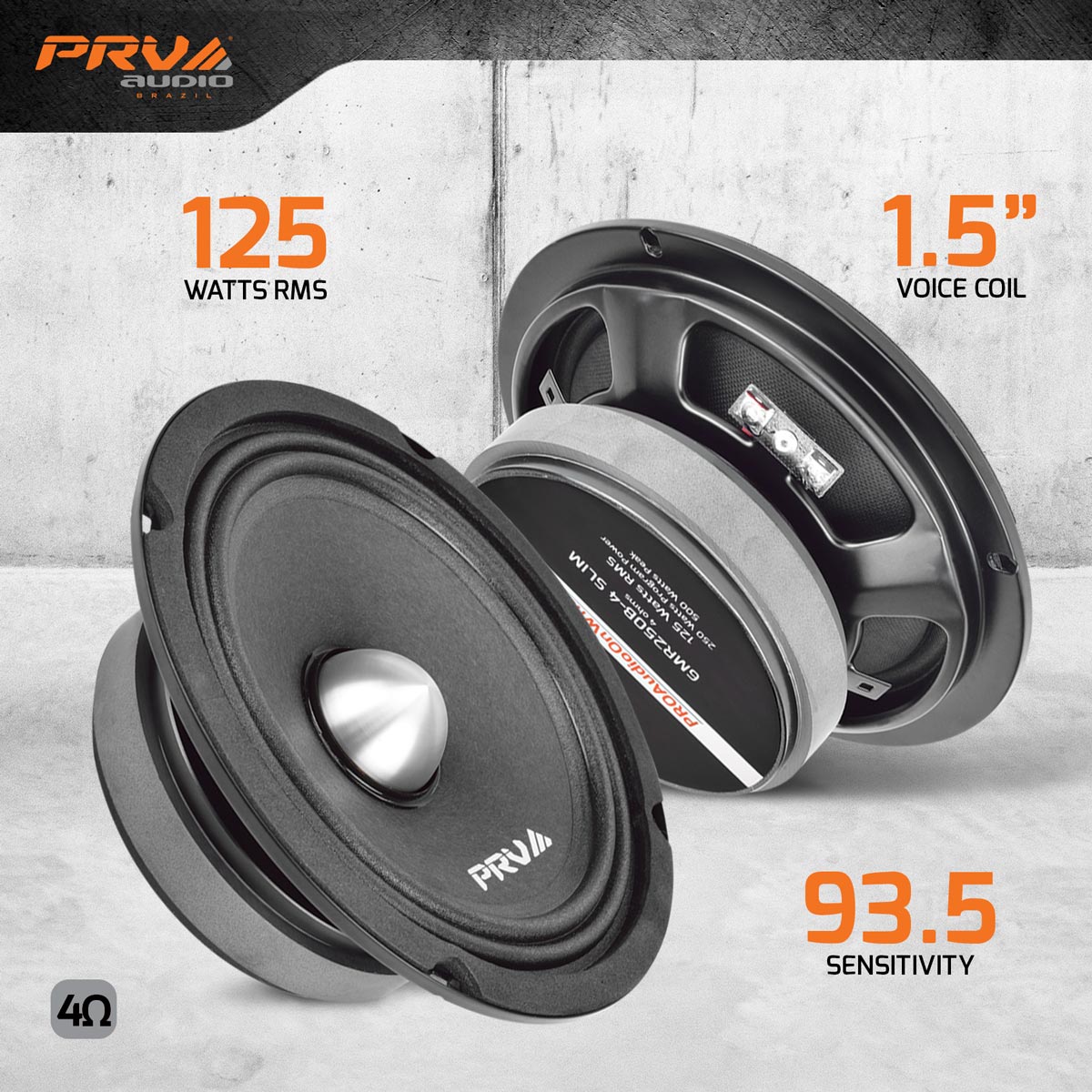

Rated AES Power Handling (RMS) | 125 Watts |
Program Power | 250 Watts |
Sensitivity 2.83V at 1m | 93.5 dB |
Recommended Hi Pass Crossover****For Full Power Handling | 145 Hz****12db Per Octave Crossover |
Frequency Response at -10dB | 145 – 8,000 Hz |
Voice Coil Diameter | 1.5″ (38 mm) |
Voice Coil Wire | CCAW |
Voice Coil Winding Depth | 9.5 mm |
Former Material | Kapton |
Magnetic Gap Depth | 6.0 mm |
Frame Material | Stamped Steel |
