PRV

$63.91 $79.89

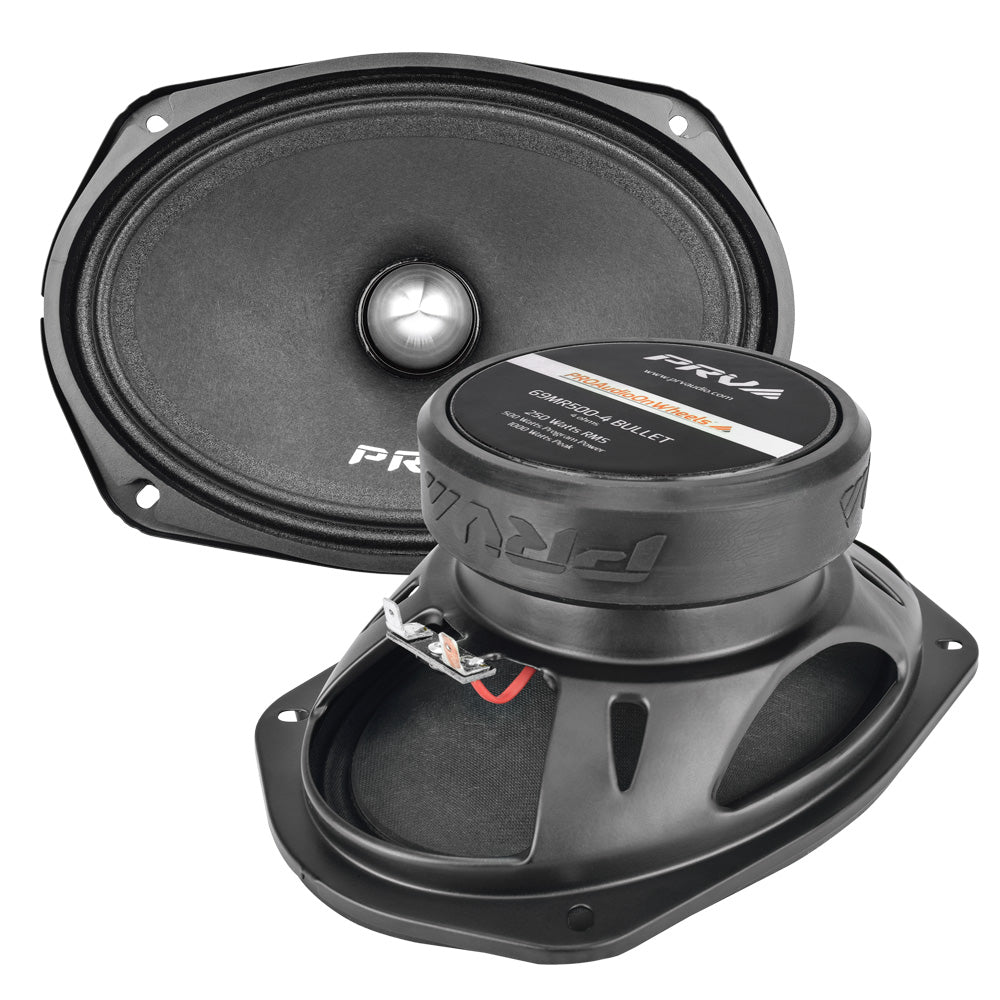

6x9" Mid Range Bullet Loudspeaker
Featuring an Aluminum Phase Plug (Bullet), this mid is built like a professional mid range loudspeaker, but it has been designed for use in the mobile audio market. By combining elements from PRO Audio and Car Audio, we have developed a NEW type of high efficient mid range that is able to give high levels of output for your custom door or rear deck.

Highlights

  • Built to Perform at Wide Frequency Range: 145 – 12,500 Hz
  • Highest Quality Speaker with bullet design available
  • High efficiency: 96 dB guarantees High Output Levels
  • Handles 500 Watts – Endurance at Loudest Volumes
  • Vented Air pole piece for heat dissipation
  • Center phase plug for even sound distribution
  • 4 Ohms Impedance

GENERAL SPECIFICATIONS

Nominal Diameter 6×9″ (152 x 228 mm)
Nominal impedance 4 Ohms
Rated AES Power Handling (RMS) 250 Watts
Program Power 500 Watts
Sensitivity 2.83V at 1m 96 dB
Recommended Hi Pass Crossover****For Full Power Handling 145 Hz****12db Per Octave Crossover
Frequency Response at -10dB 150 – 12,500 Hz
Voice Coil Diameter 1.5″ (38 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 9.5 mm
Former Material Kapton
Magnetic Gap Depth 6.0 mm
Frame Material Stamped Steel
