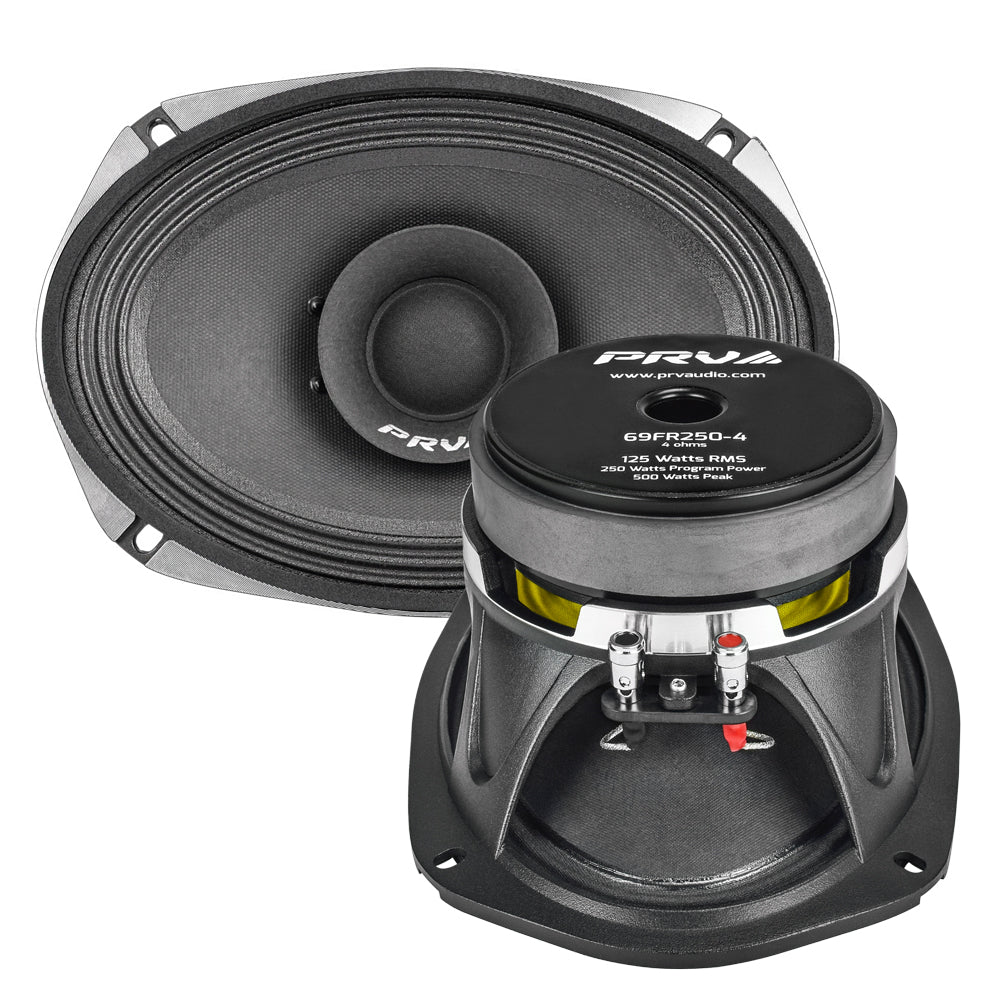

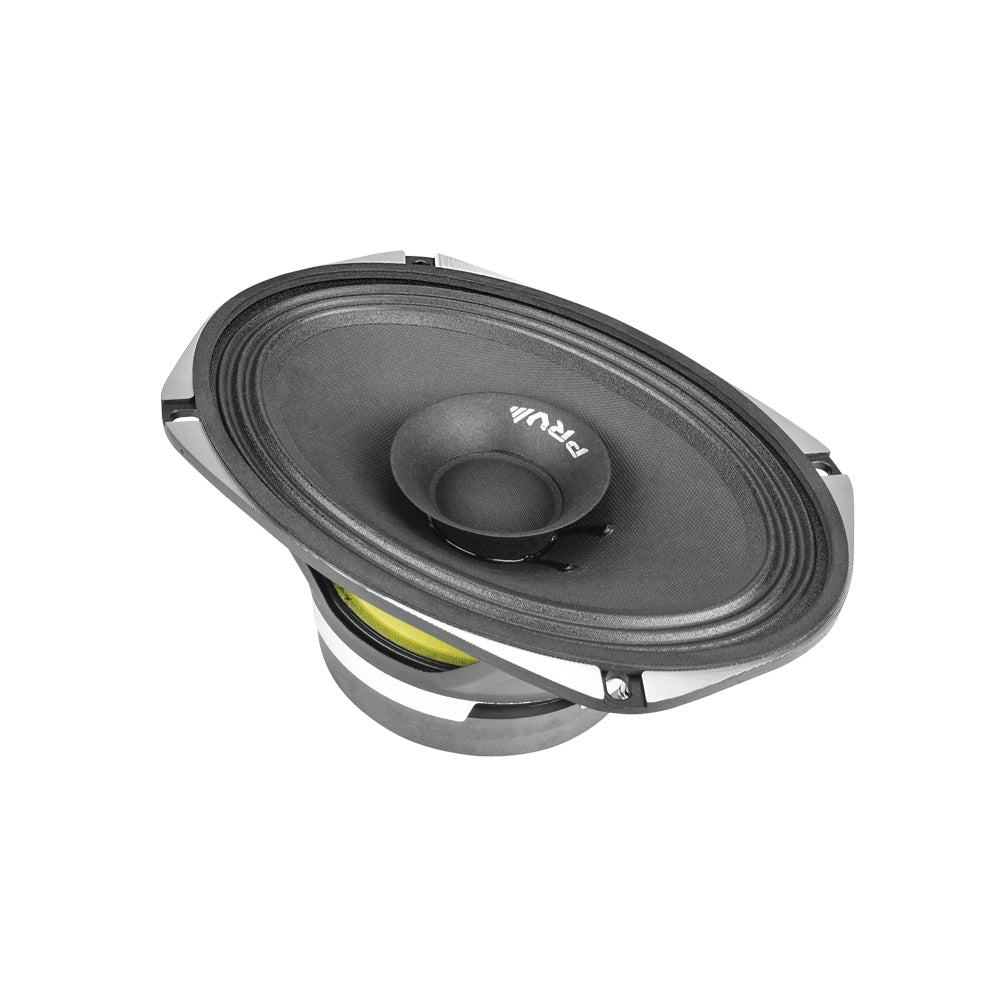

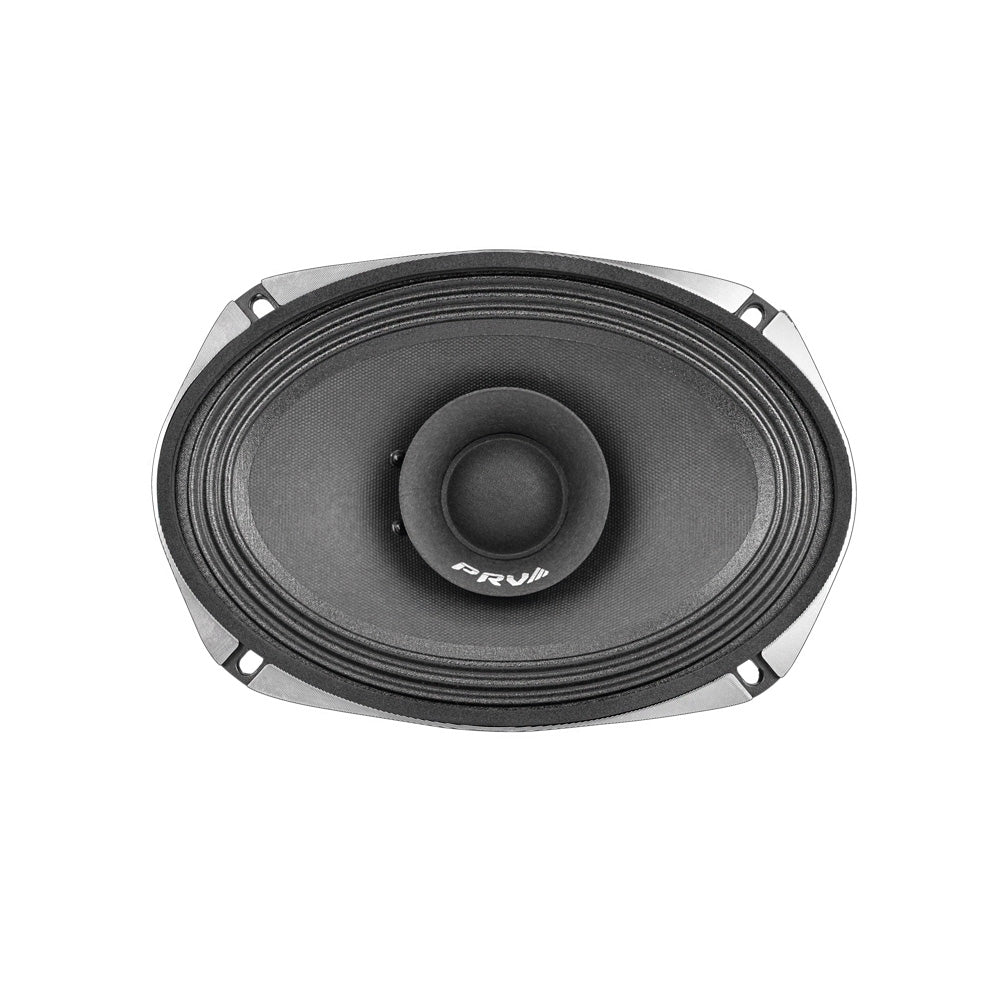

PRV 69FR250-4 (SINGLE)

The PRV Audio FR Series sets a new standard of value in high-performance Full Range drivers. The 69FR250-4 full-range driver is an excellent choice when space is at an absolute minimum, eliminating the need for a tweeter.

This loudspeaker has a dual cone design, the primary cone handles low to midrange frequencies while the smaller secondary cone increases high-frequency response from 75 Hz to 18,000 Hz.
The combination of a low-distortion motor system with a copper ring and a unique woven-cloth dust cap provides exceptional clarity, detail, and dynamics at an impressive 94 dB of sensitivity.

 Highlights

• Nominal Impedance: 4 Ohms
• Rated AES Power Handling (RMS): 125 Watts
• Program Power: 250 Watts
• Sensitivity (1W/1m): 94 dB
• Voice Coil Diameter: 1.5″

GENERAL SPECIFICATIONS

Nominal Diameter	6″ x  9″ (159 x 228 mm)
Nominal impedance	4 Ohms
Rated AES Power Handling (RMS)	125 Watts
Program Power	250 Watts
Sensitivity 2.83V at 1m	94 dB
Recommended Hi Pass Crossover****For Full Power Handling	80 Hz****12db Per Octave Crossover
Frequency Response at -10dB	75 – 18,000 Hz
Voice Coil Diameter	1.5″ (38 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	10.0 mm
Former Material	Kapton
Magnetic Gap Depth	6.0 mm
Frame Material	Aluminum
