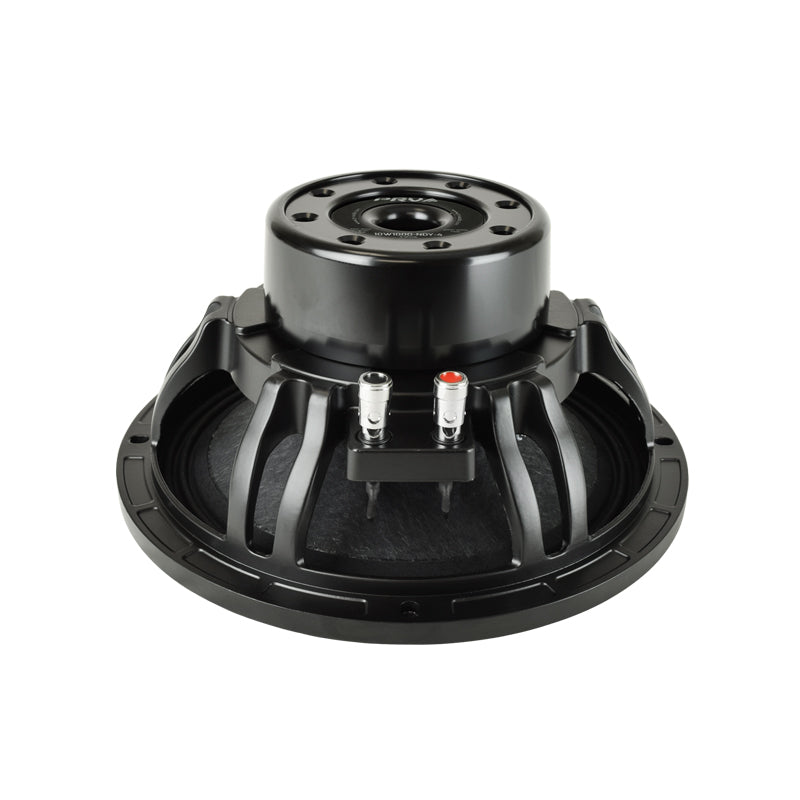

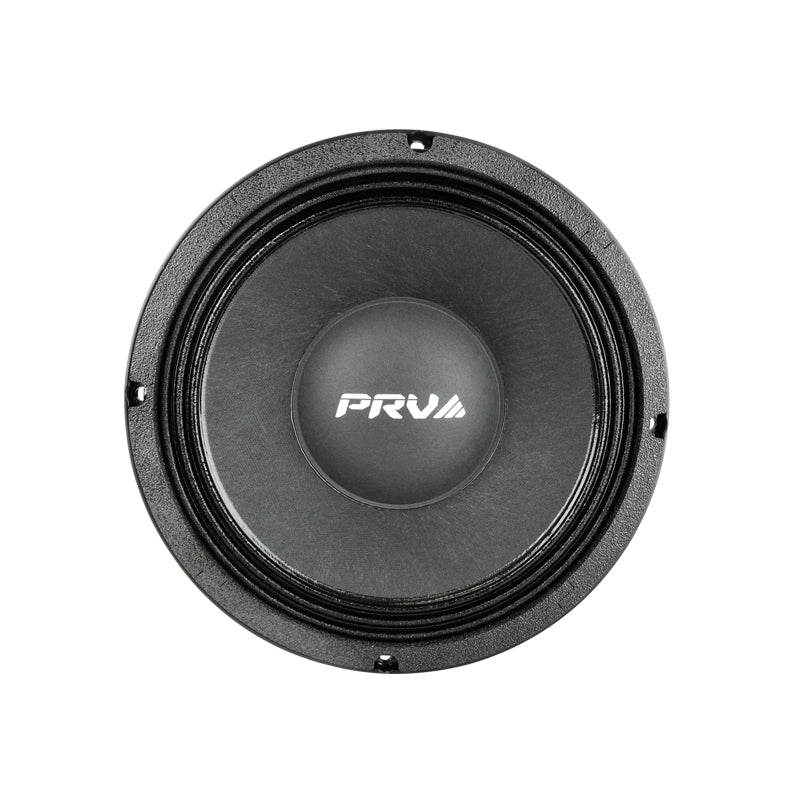

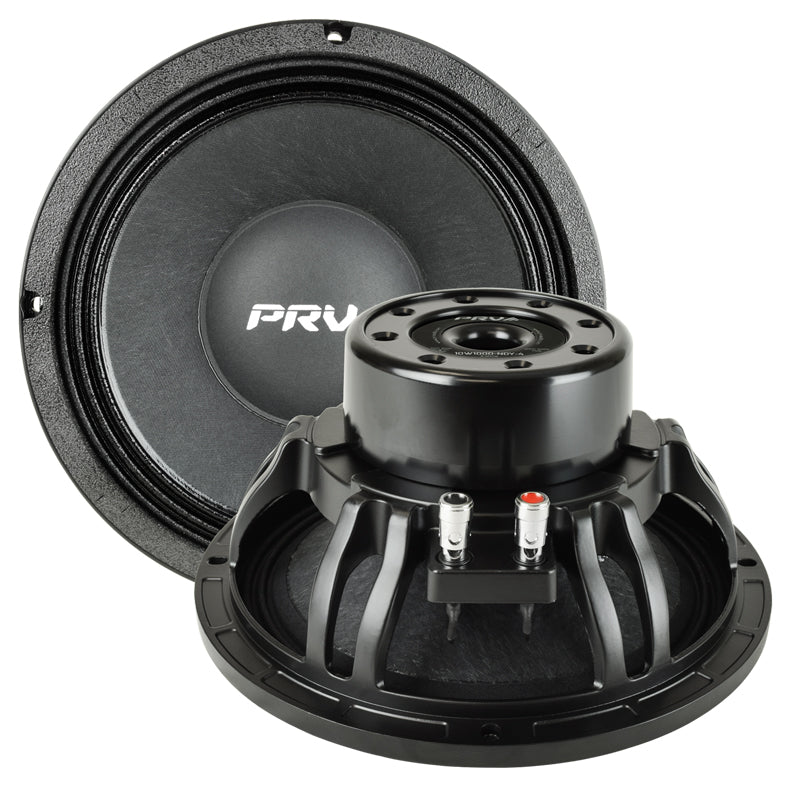

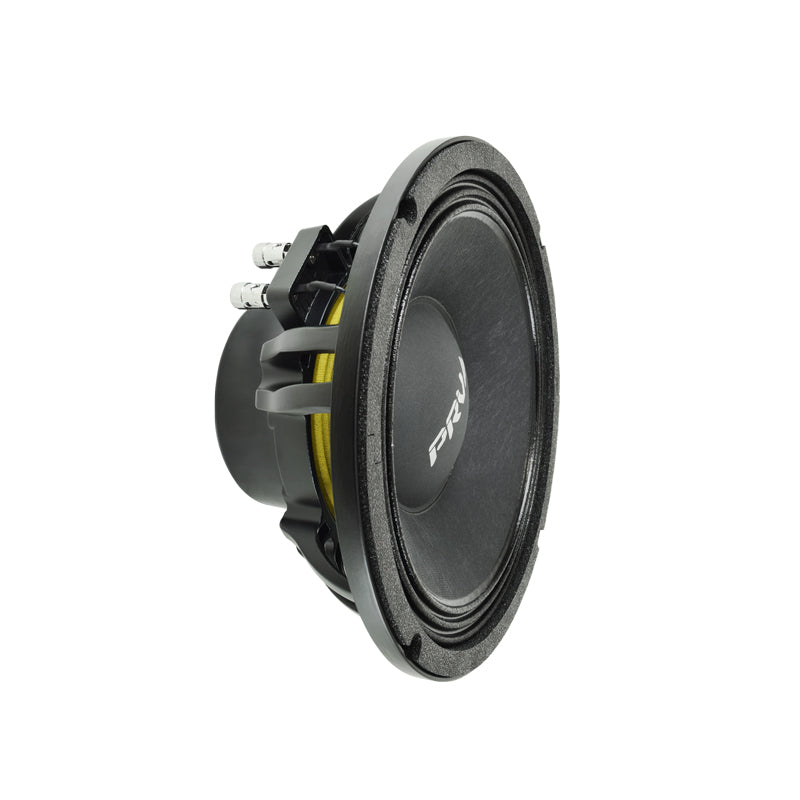

PRV 10W1000-NDY (8OHM) (Single)

PRV 10W1000-NDY (8OHM) (Single) SALE
PRV 10W1000-NDY (8OHM) (Single) SALE
PRV 10W1000-NDY (8OHM) (Single) SALE
PRV 10W1000-NDY (8OHM) (Single) SALE

PRV

$199.91 $249.89




GENERAL SPECIFICATIONS

Nominal Diameter 10″ (254 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 500 Watts
Program Power 1000 Watts
Sensitivity 2.83V at 1m 98 dB
Recommended Hi-Pass Crossover**
**For Full Power Handling
80 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 55 – 5,500 Hz
Voice Coil Diameter 3″ (76 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 18.0 mm
Former Material Fiber Glass
Magnetic Gap Depth 10.0 mm
Frame Material Die Cast Aluminum




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 39.0 l
Excursion (mathematical)*** Xmax 6.5 mm
Free Air Resonance Fs 62.12 Hz
Mechanical Factor Qms 11.57
Electrical Factor Qes 0.42
Total Factor Qts 0.40
Cone Area Sd 380 cm²
Mechanical Mass Mms 33.93 g
Bl Factor Bl 12.73 Tm
Dc Resistance Re 5.1 Ohms
Inductance Le 0.64 mH at 1 kHz
Mechanical Mass Without Air Mmd 29.73 g
Mechanical Compliance Cms 0.193 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 10.27” (261 mm)
Front Mount Baffle Cutout 9.05” (230 mm)
Mounting Depth 4.49” (114 mm)
Overall Depth 5.00” (127 mm)
Net Weight 8.38 lbs (3.8 kg)
Shipping Weight 9.70 lbs (4.4 kg)
Carton Dimensions W x L x H 11.2” x 11.2” x 5.71”
(285 x 285 x 145 mm)
