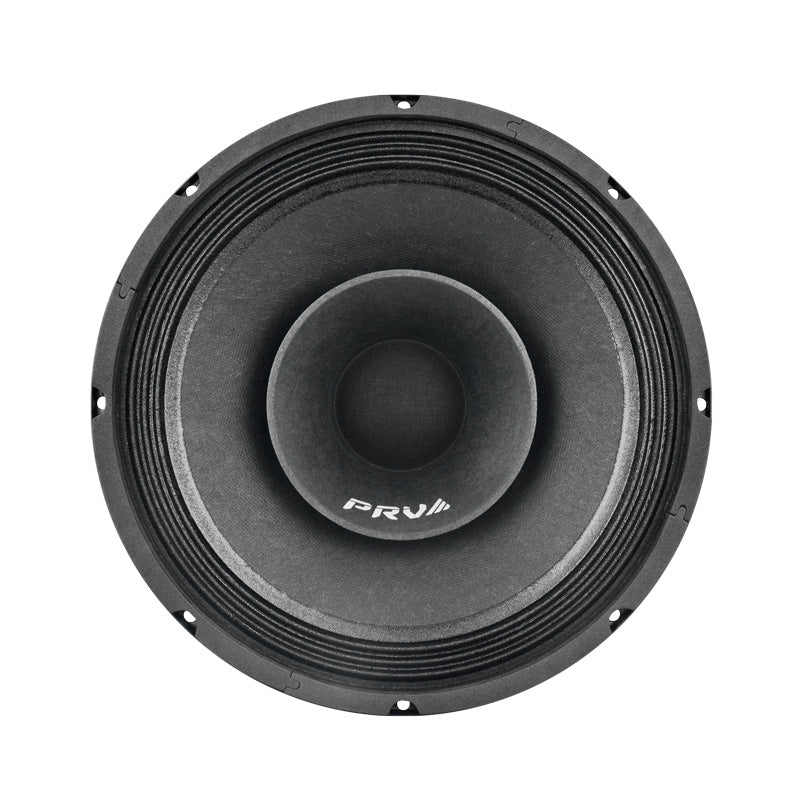

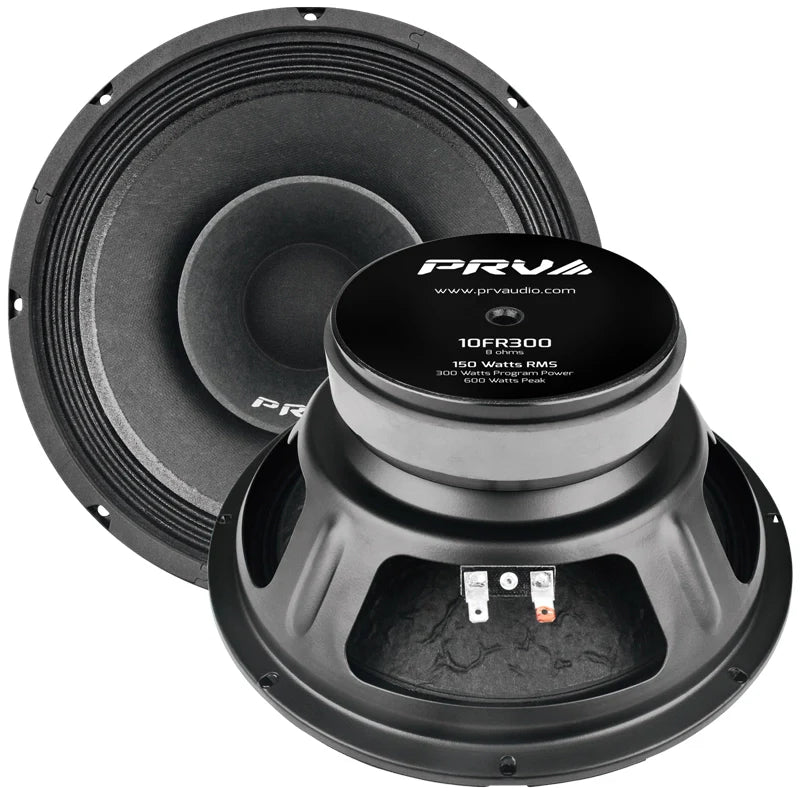

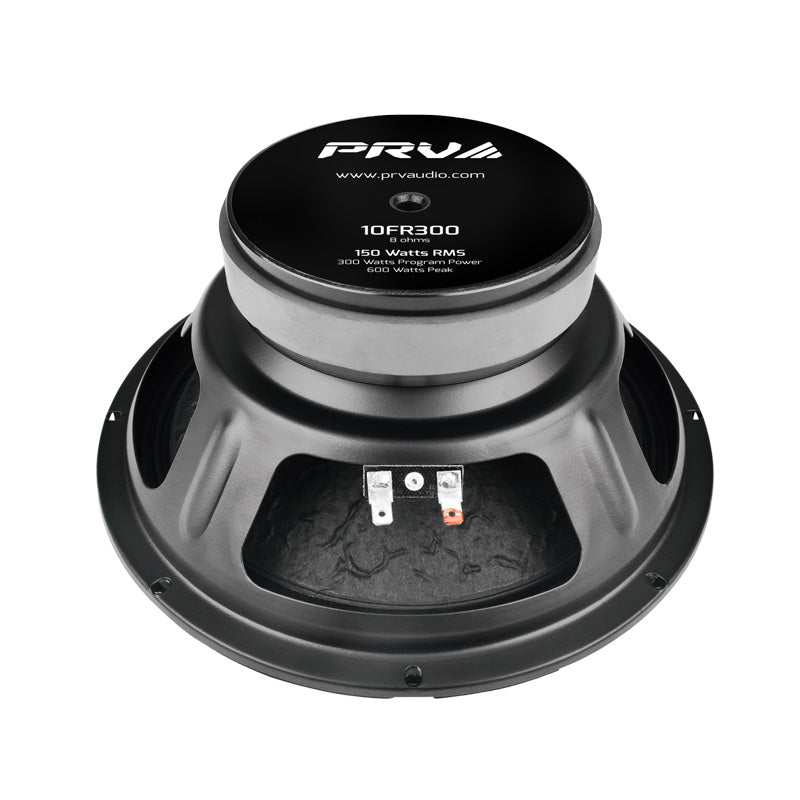

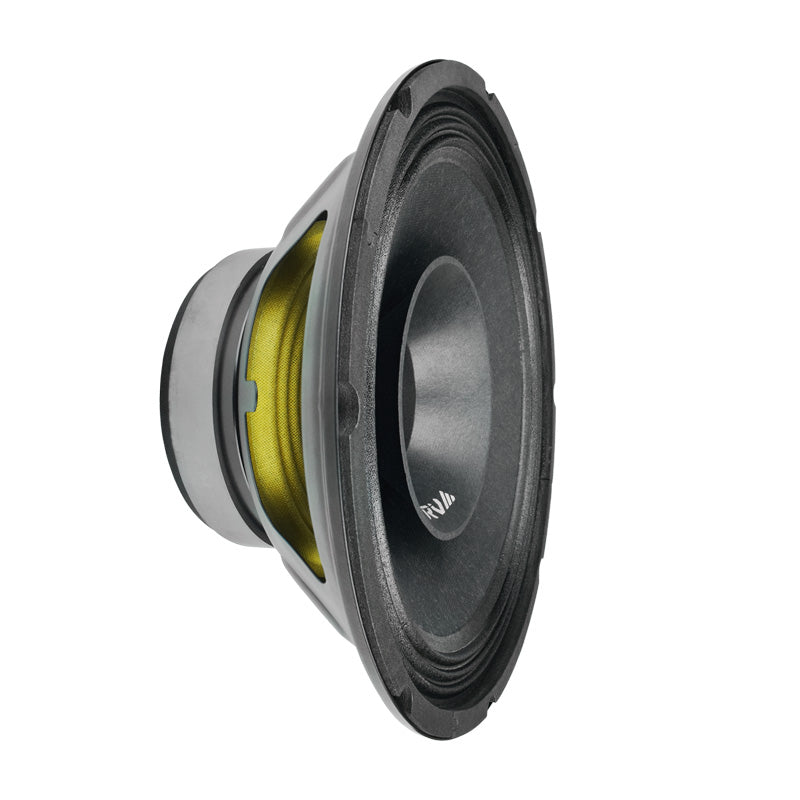

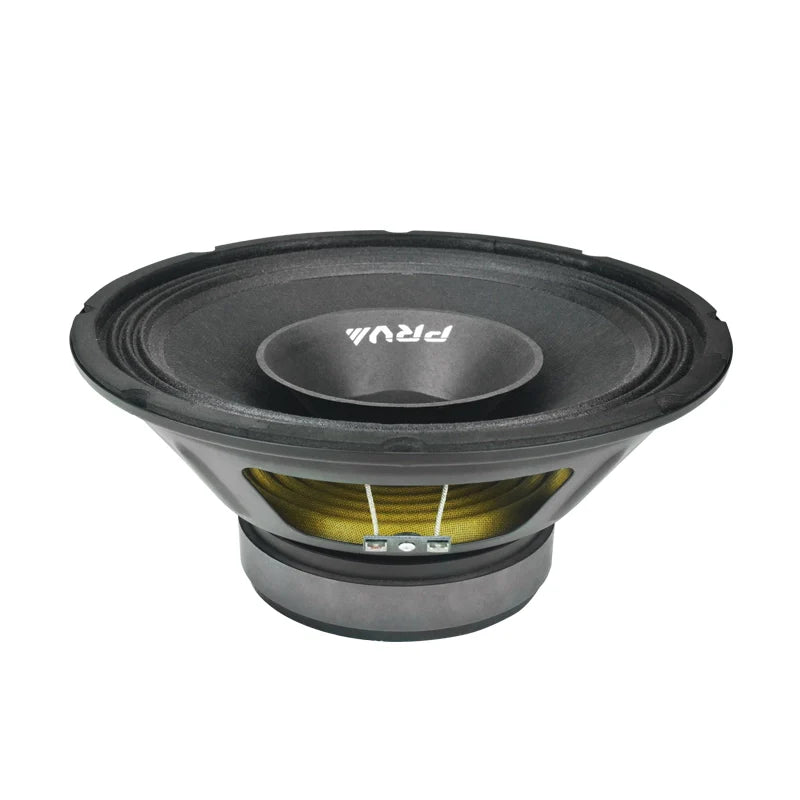

PRV 10FR300 (SINGLE)
The PRV Audio FR Series sets a new standard of value in high-performance Full Range drivers. The 10FR300 full-range driver is an excellent choice when space is at an absolute minimum, eliminating the need for a tweeter.
This loudspeaker has a dual cone design, the primary cone handles low to midrange frequencies while the smaller secondary cone increases high-frequency response from 50 Hz to 14,000 Hz.
The combination of a low-distortion motor system with a copper ring and a unique woven-cloth dust cap provides exceptional clarity, detail, and dynamics at an impressive 100 dB of sensitivity.
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 150 Watts
- Program Power: 300 Watts
- Sensitivity (1W/1m): 100 dB
- Voice Coil Diameter: 2″
|Nominal Diameter||10″ (254 mm)|
|Nominal impedance||8 Ohms|
|Rated AES Power Handling (RMS)||150 Watts|
|Program Power||300 Watts|
|Sensitivity 2.83V at 1m||100 dB|
Recommended Hi Pass Crossover**
**For Full Power Handling
**12db Per Octave Crossover
|Frequency Response at -10dB||50 – 14,000 Hz|
|Voice Coil Diameter||2″ (51 mm)|
|Voice Coil Wire||CCAW|
|Voice Coil Winding Depth||12.0 mm|
|Magnetic Gap Depth||8.0 mm|
|Frame Material||Stamped Steel|
