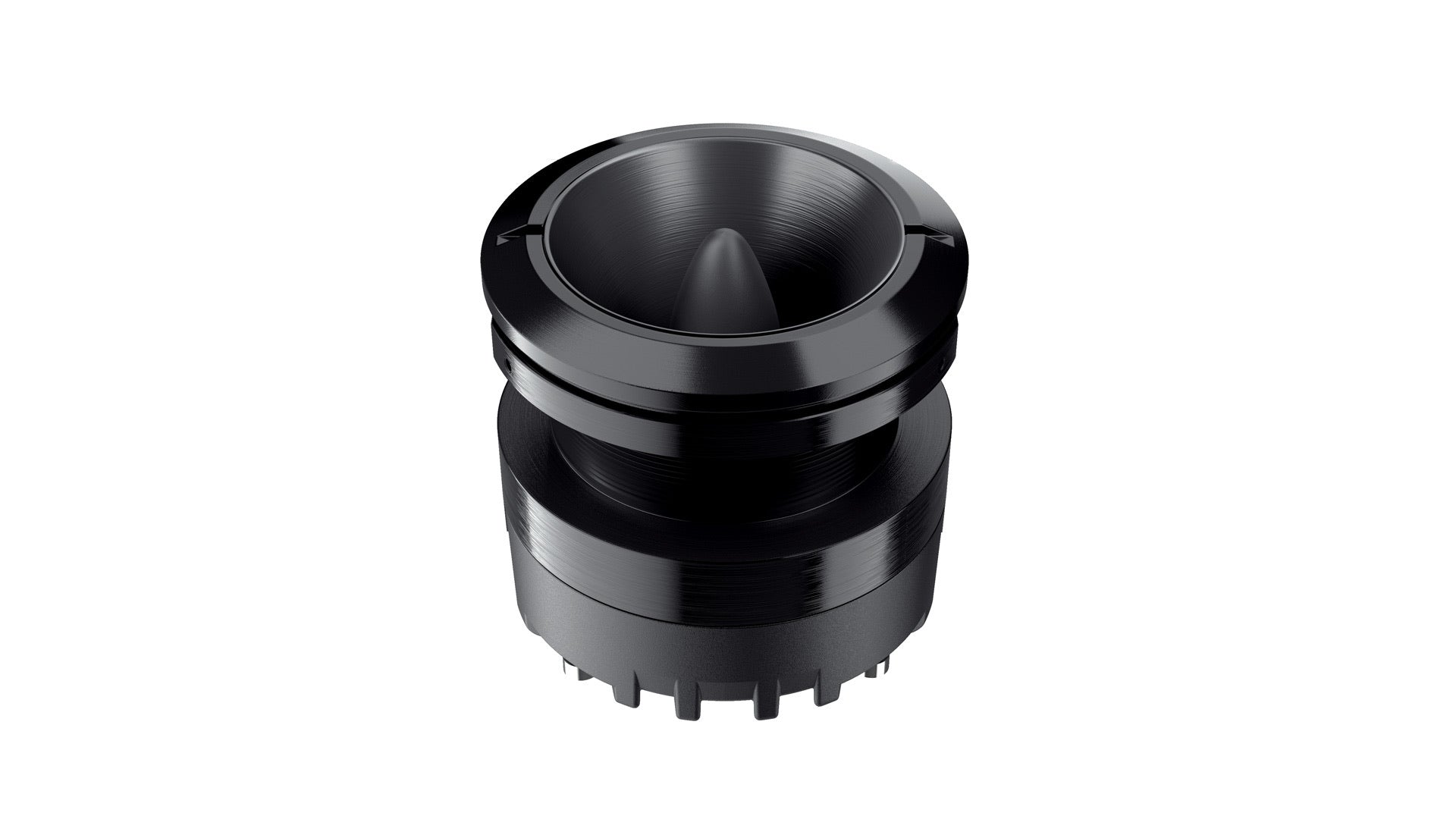

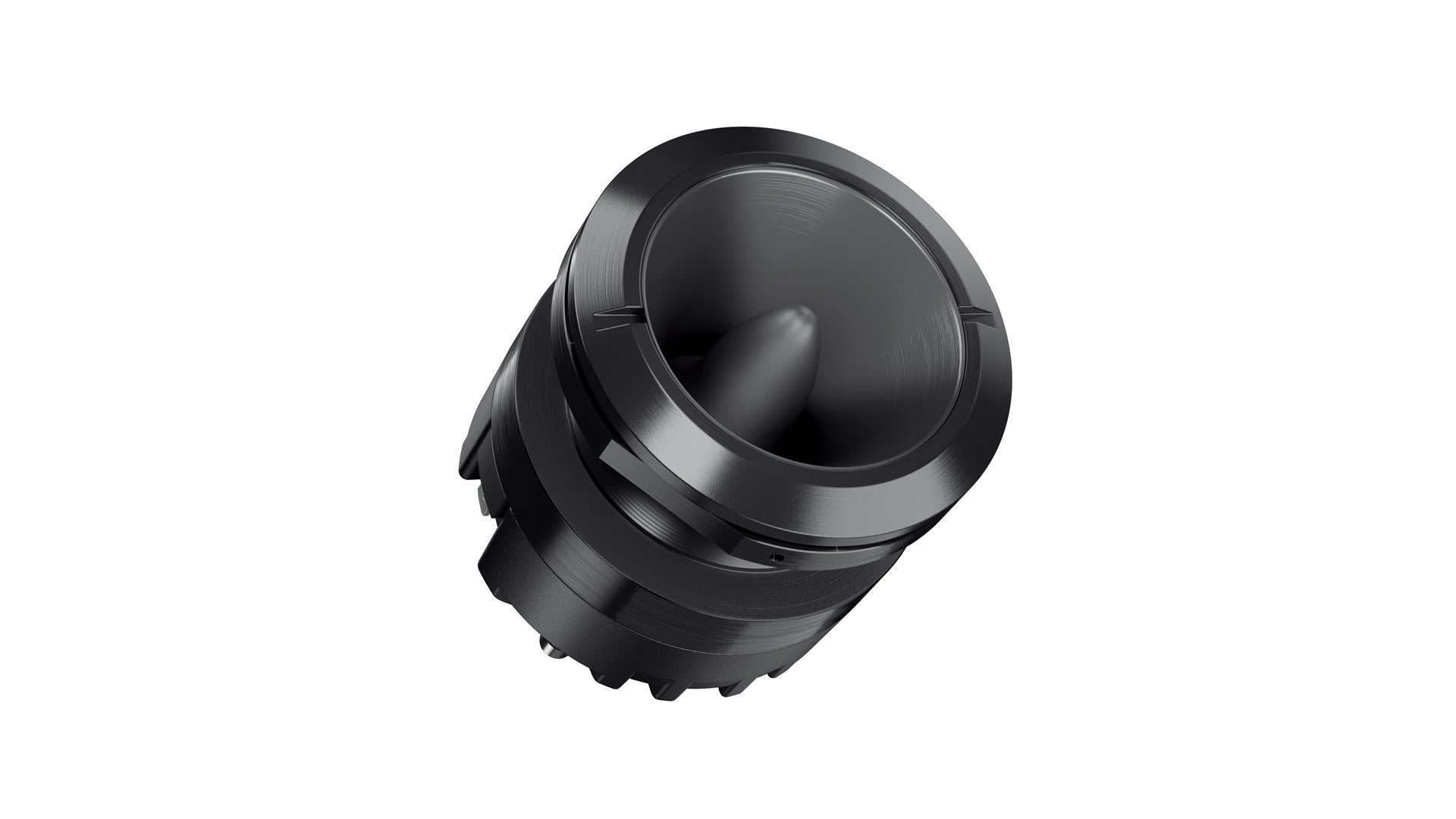

Hertz - ST35A NEO HIGH EFFICIENCY COMPRESSION DRIVER Tweeter
SALE
Hertz
ST 35A NEO
HIGH EFFICIENCY COMPRESSION DRIVER
NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The “Active” version, ST 35A Neo provides tweeter only.
Data table
| Size mm (in.) | 46 (1.8) |
| Power Handling - Peak W | 120 Hi-pass filtered @ 5 kHz - 12 dB Oct. |
| Impedance Ω | 4 |
| Frequency response Hz | 2k ÷ 20k |
| Sensitivity dB SPL | 109 |
| Voice coil Ømm (in.) | 35 (1.4) |
| Magnet | Neodymium |
| Cone/Dome | Aluminium |
Features
1. Powerful Neodymium magnet providing high performance with compact size.

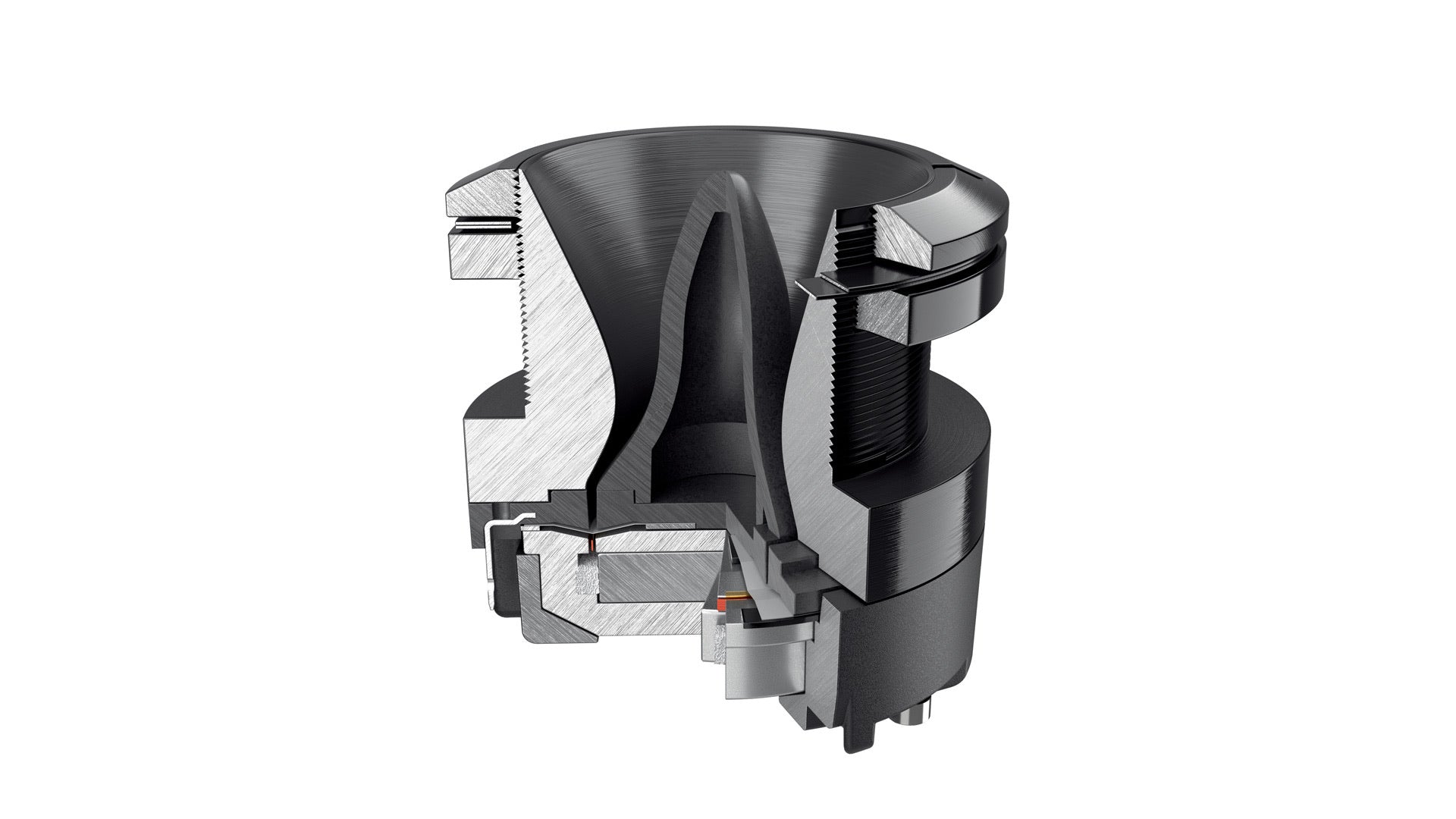

2. FEM (Finite Element Method) optimized phase-plug and loading horn.
3. CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
4. Extra-light aluminium membrane to maximize SPL with high current, screw terminals.
5. Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.
6. Aluminium back cover for superior heat dissipation.
7. Impressive low frequency extension and efficiency.
Technologies
-
NATURE PROOF
Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an unlimited fun in every condition!
