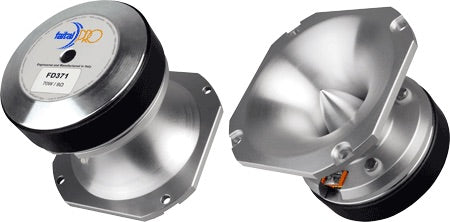

FAITAL PRO FAITAL PRO FD371 - SUPERTWEETER
Faital Pro
$171.93
- THE FAITAL PRO FD371 HANDLES A POWERFUL 35 WATTS RMS @ 2.6KHZ & 70 WATTS PROGRAM POWER @ 2.5KHZ
- ANNULAR PHASE PLUG & KETONE POLYMER DIAPHRAGM
- SUPER SMOOTH SOUND THANKS TO ITS' KETONE POLYMER DIAPHRAGM
- EXTREMELY LOW DISTORTION
- VERSATILE ENOUGH FOR HI-END HOME THEATER SYSTEMS & PROFESSIONAL P.A. SYSTEMS, SOUND REINFORCEMENT, ETC.
- Machined From A Solid Block Of Aluminum!
|
H.F. DRIVER MODEL - FD371 |
|||||
|
Specifications |
|||||
| Impedance | 8 ohms | ||||
| D.C. Resistance | 5.5 ohms | ||||
| Sensitivity (1W/1m) | 107dB SPL | ||||
| AES Power Handling | 35 Watts | ||||
| Program Power Handling | 70 Watts | ||||
|
Frequency Response |
2.6kHz - 20kHz |
||||
| Recommended Crossover | 2.6 kHz @12 dB/oct. | ||||
| Dispersion | 40°Conical | ||||
| Voice Coil Diameter | 1.46" / 37mm | ||||
| Winding Depth | 0.08" / 2.1mm | ||||
| Magnetic Gap Depth | 0.1" / 2.6mm | ||||
| Flux Density | 1.5T | ||||
| Phase Plug | Annular | ||||
|
Mounting Information |
|||||
| Overall Diameter | 4.53" / 115.2mm | ||||
| Overall Height | 4.01" / 102mm | ||||
| Overall Width | 4.01" / 102mm | ||||
| Overall Depth | 3.11" / 79mm | ||||
| Baffle Cutout Dimensions | 3.66" / 93mm | ||||
| Bolt Circle Diameter | 4.21" / 107mm | ||||
| Flange Thickness | .22" / 5.5mm | ||||
| Net Weight | 2.8 lb. / 1.27 kg. | ||||
| Shipping Weight | 2.9 lb. / 1.3 kg. | ||||
|
Materials |
|||||
| Diaphragm | Ketone Polymer | ||||
| Voice Coil | Aluminum | ||||
| Voice Coil Former | Kapton | ||||
| Magnet | Ferrite | ||||
| Frequency Response | |||||
 |
|||||
| Beamwidth | |||||
 |
|||||
| Impedance Curve | |||||
 |
|||||
|
|||||
