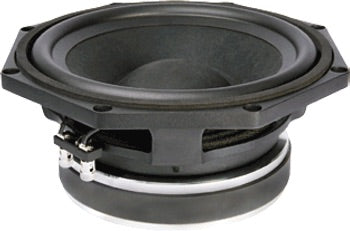

FAITAL PRO 8RS250 - 8" MID-BASS / BASS SPEAKER

FAITAL PRO 8RS250 - 8" MID-BASS / BASS SPEAKER SALE

Faital Pro

$178.94 $238.00

**SOLD IN SINGLES**

  • THE  FAITAL PRO 8RS250 8" SPEAKER CAN HANDLE 200 WATTS AES & 400 WATTS PROGRAM POWER
  • FEATURES A RUBBER SURROUND, LOW FS OF 56HZ, HIGH XMAX OF 6.92 & HIGH X DAMAGE OF 15.7MM
  • LOWER DISTORTION & A FLAT RESPONSE ACROSS ITS' ENTIRE FREQUENCY RANGE THANKS TO ITS ALUMINUM DEMODULATION RING
  • WIDE FREQUENCY RANGE FROM 60HZ TO 6.3KHZ
  • WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
  • GREAT FOR MID-BASS OR BASS SPEAKER APPLICATIONS

THE FAITAL PRO 8RS250 FEATURES AN ALUMINUM DEMODULATION RING FOR A FLAT RESPONSE AND LOW DISTORTION & HALF





Specifications

Nominal Basket Diameter

8"

/ 200mm

Impedance

8 ohms
AES Power Rating

200 Watts
Program Power 400 Watts
Frequency Response 60Hz - 6.3kHz
Sensitivity (1W/1m)

93dB SPL
Voice Coil Diameter 2" / 52mm
Voice Coil Length 16.5 mm
Air Gap Height 8.0 mm
X Damage 15.7 mm
BL Factor 13.5 N/A

Mounting Information

Overall Diameter 8.81"/8.18" / 223.8mm/207.9
Bolt Circle Diameter 8.27" / 210mm
Baffle Cutout Diameter-Front Mount 7.2" / 183mm
No. Of Mounting Holes 8
Overall Depth 4.25" / 108mm
Flange & gasket Thickness 0.6" / 15.3mm
Net Weight 9.7 lb. / 4.4 kg.
Shipping Weight 10.4 lb. / 4.7 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Rubber
Surround Shape Half Roll
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 56 Hz
Impedance (Re) 5.7 ohms
Coil Inductance (Le) 0.35 mH
Mechanical Q (Qms) 5.7
Electrical Factor (Qes) .34
Total Q (Qts) .32
Comp. Equivelant Vol. (Vas) 0.57 ft3 / 16 Liters
Voice Coil Overhang (Xmax) 6.92 mm
Surface Area of Cone (Sd)m2 0.0207m2
Reference Efficiency .81%
Diaphragm Mass (Mms) 30.6 Grams
Mechanical Compliance (Cms) .26 mm/N
Mechanical Resistance (Rms) 1.89 Kg/s

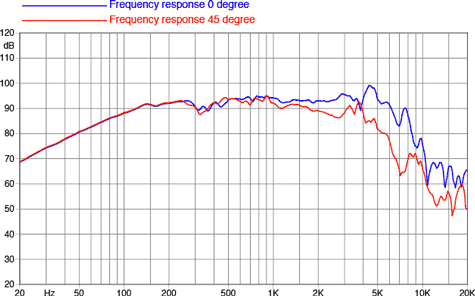

Frequency Response

Faital Pro 8RS250 Frequency

Free Air Impedance Curve
Faital Pro 8RS250 Impedance

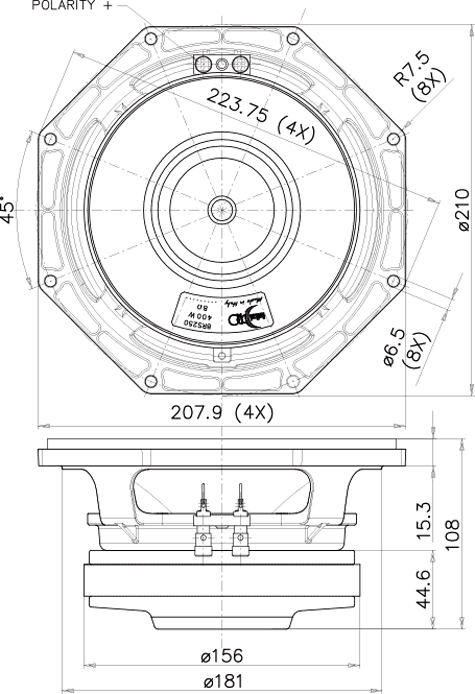

Mounting Dimensions

Faital Pro 8RS250 Dimensions
