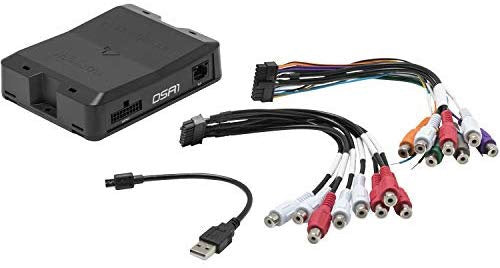

Digital Sound Processor (DSP) - Rockford Fosgate - DSR1

Digital Sound Processor (DSP) - Rockford Fosgate - DSR1

Regular price
$268.99
Sale price
$268.99

The DSR1 is the first real solution for replacing the factory amplifier and speakers in Ford and Chrysler vehicles, as the DSR1 uses the full-range, flat audio signal from the factory source unit.

After the built-in Maestro interface is flashed with the vehicle-specific firmware, the factory source unit CANbus messages are used to control the internal signal routing of the DSR1. The DSR1 still utilizes the power processor found in our patented 3Sixty.3, but adds an easy to use app for tuning from Apple and Android devices.



  • Digital Signal Processing with Integrated Maestro CAN Interface
  • Four Channel Balanced Differential RCA Inputs
  • Four Channel High Level Inputs with Signal Sense Turn On
  • 18 Pin Analog Input Harness
  • 16 Pin Analog Output Harness
  • Micro USB Setup/Update Port
  • Designed for use with Select Maestro Vehicle T-Harnesses
  • Auxiliary RCA and SPDIF Coaxial Inputs
  • Optional PLC2 Level Controller with Assignable Functions
  • 245 Bands of Equalization for Aftermarket Tuning
  • Adjustable crossovers with selectable slope
  • Up 10msec of delay on each channel for Time Alignment
  • Bluetooth 4.0 Connectivity for convenient setup
  • Interactive Tuning Interface Controlled via Android/ iOS APP
  • CE and FCC Compliant
  • 1 Year Warranty
Tuning Connectivity via Bluetooth

Bluetooth connectivity allows connection to a mobile device for tuning (non audio streaming.)

Tuning Connectivity via Bluetooth
CE Compliant
CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 ...

iDatalink Maestro
iDatalink Maestro

The iDatalink Maestro technology is a flashable module that allows vehicle



Processor Type: Digital Processor
Input Impedance :20k Ohms
Signal Input:
4 Balanced Differential RCA Inputs
4 High-Level Inputs w/ Signal Sense
2 AUX RCA Inputs
SPDIF Coaxial Input
Output Impedance
200 Ohms
Frequency Response
20Hz - 20kHz +/- 0.5dB
Operating Voltage
9 - 16 VDC
Mounting: Behind Dash
Signal Output: 8 RCA Outputs
Input Voltage
Low Level (RCA): up to 4V
High Level: up to 12.5V
High Level Turn-On: 4V - 16V
AUX: up to 2V
Gain : —
Output Voltage: up to 4V RMS
THD+N :<1.0%
Signal-to-Noise
RCA: >100 dBA (A-weighted)
AUX: >100 dBA (A-weighted)
Digital Signal Processing (DSP)
Speed: 147 MIPS
Precision: 32-BIt
Accumulators: 72-bit
Digital to Analog (DAC)
Precision: 24-Bit
Dynamic Range: 108 dB
THD+N: -98 dB
Analog to Digital (ADC)
Precision: 24-Bit
Dynamic Range: 105 dB
THD+N: -98 dB
Crossover Type
High-Pass
Low-Pass
Band-Pass
All-Pass
Class: Linkwitz-Riley
Crossover Frequency
Variable: 20 Hz to 10 kHz
Crossover Slope
Selectable Slope:
6/12/18/24/30/36/48 dB/Octave
EQ Frequency Centers
Channels: Front/Spare/Rear/Sub
Frequency Bands: 31 per channel
EQ Frequency Controls
Selectable Q: 0.01 to 10.0
Smartphone Compatibility
APPLE: iOS 10.0 or later
(iPhone, iPad, iPod touch)
ANDROID:Marshmallow 6.0 or later
(optimized for 5-inch screen or larger)
Smartphone App
T-Harness Extensions
HRN-AR-EXT2 (2m Extension)
HRN-AR-EXT4 (4m Extension)
Shipping Weight
0.5 Lbs. (0.22 Kg)
Dimensions (H x W x D)
1.26" x 4.04" x 5.12"
(32 mm x 102.5 mm x 130 mm)
