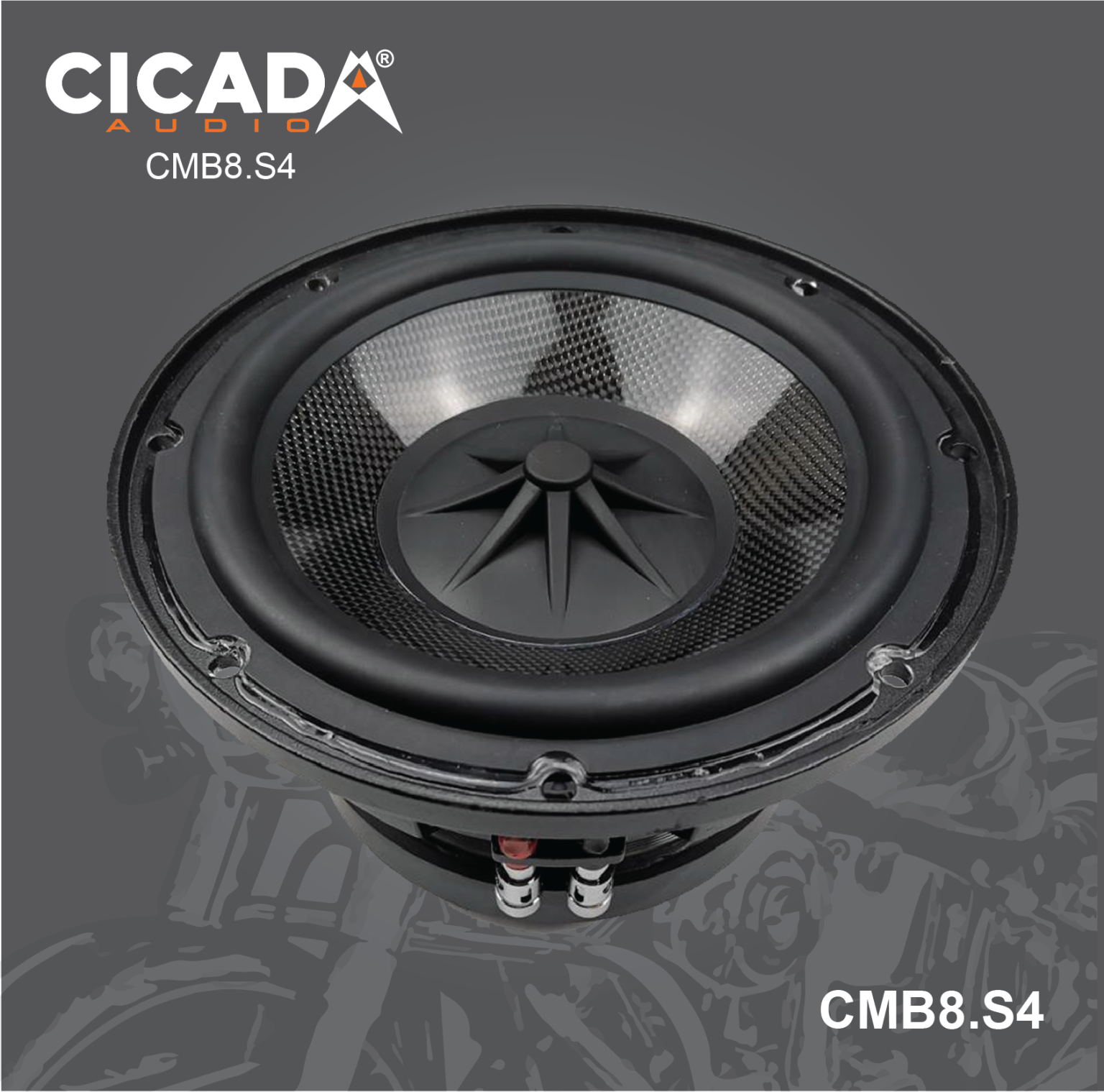

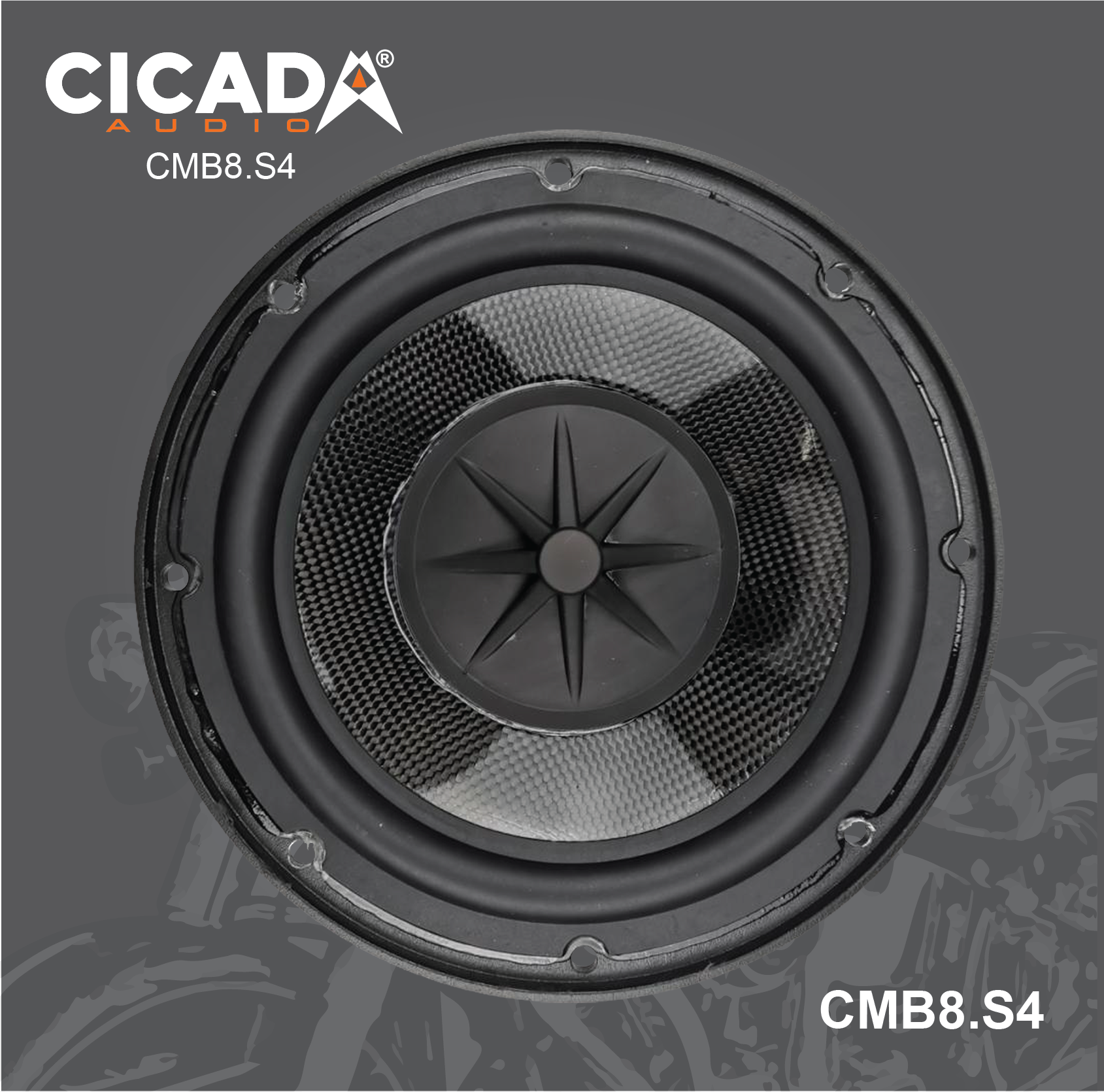

Cicada CMB8.S4 8″ PRO MID-BASS – 4 OHM

Cicada CMB8.S4 8″ PRO MID-BASS – 4 OHM
Cicada CMB8.S4 8″ PRO MID-BASS – 4 OHM

Cicada Audio

$449.99

Pro Sound MidBass Driver

  • 600WRMS/1200 MAX Power Handling
  • Ferrite Magnet structure
  • Heavy Duty / Die-cast Aluminum Basket
  • 2.5” 4-Ohm / 6 Layer High Temp Voice Coil (Black Coat™) Voice Coil
  • Vented Voice Coil Gap for Maximum Heat dissipation
  • Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
  • Frequency Response: 35Hz -3Khz+/-5dB
  • High Sensitivity: 87.2dB (1W/1M )
  • Total Diameter: 8.3” / 211mm
  • Mounting Depth: 3.9” / 99.5mm
  • Mounting Diameter: 7.38” / 187.5mm

SOLD INDIVIDUALLY

APPLICATIONS/CUSTOM FITMENT:

Utilizing these drivers is TOTAL custom fabrication. And power hungry too!! They are rated at 600WRMS each (typically used in pairs – left and right bag) But can handle 1200 WRMS .

So the amplifiers of choice would be a CICADA AUDIO BDA2000.4D – 4 CH amplifier bridged turning it into a BIG 2 channel (over 1,000WRMS pre Bridged Output using one bridged channel per midbass driver) Or a BDA2200.1D Mono Block driving a pair of these brutes parallel (2 ohm 2200 watts) Both are viable and great options for the truly crazy out there (and yes you can get crazier…BUT!!!!)

REMEMBER…GOING THIS ROUTE MEANS ADDITIONAL LITHIUM BATTERIES (like a UNLIMITED NANO for example!) Power means current draw!  For every 1,000 watts RMS you need 116A of current.  You do the math!!!!

SOLD INDIVIDUALLY!!!!!  NOT IN PAIRS!!!!!!
