Beyma - Coaxial Speaker - 6.5” - Beyma PRO6FX240ND HIGH POWER 6.5”
Beyma
SOLD IN SINGLES
KEY FEATURES
• High power handling: 400 / 80 W Program Power (LF / HF)
• High Sensitivity: 94 / 103 dB (LF / HF)
• Extended controlled displacement: Xmax 5,5 mm
Shorting copper pad for low harmonic distortion and linear
impedance
• Carbon Fiber cone with High End quality sound
CONEX spider for higher resistance and consistency
• Common Neodymium magnetic system for low weight and
mounting depth
• Excellent off-axis response
70° conical coverage for HF dispersion control
• PM4 diaphragm for natural sound

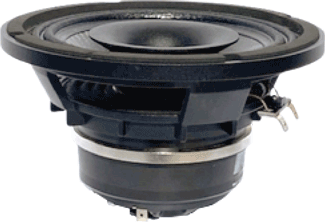

- BEYMA PRO6FX240ND COAXIAL SPEAKER INCLUDES A 6.5" IN A CAST FRAME WOOFER & A LIGHTWEIGHT NEODYMIUM 1" EXIT HF COMPRESSION DRIVER
- HANDLES A POWERFUL 200 WATTS AES & 400 WATTS PROGRAM & HAS A FREQUENCY RANGE FROM 100HZ TO 20KHZ
- COMMON NEODYMIUM MAGNET FOR BOTH THE LOW FREQUENCY & HIGH FREQUENCY REDUCES PHASE PROBLEMS & PROVIDES A SINGLE POINT SOURCE
- HIGH FREQUENCY DRIVER UTILIZES A NEW PM-4 MATERIAL FOR A SMOOTH SOUND
- CONEX SPIDER & DEMODULATION RING FOR THE LOW FREQUENCY TO FLATTEN RESPONSE AND LOWER DISTORTION
- LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS ONLY 4.18 lbs.
- EXCELLENT OFF-AXIS RESPONSE OF 70º CONICAL DISPERSION
- FOR ALL HIGH QUALITY SOUND SINGLE POINT SOURCE APPLICATIONS INCLUDING MOTORCYCLE BAGS, HIGH QUALITY CAR SPEAKER SYSTEMS, MOVIE THEATERS, SMALL PA SYSTEMS, ETC.
- DESIGNED FOR USE WITH THE FD2CX 2-WAY CROSSOVER
|

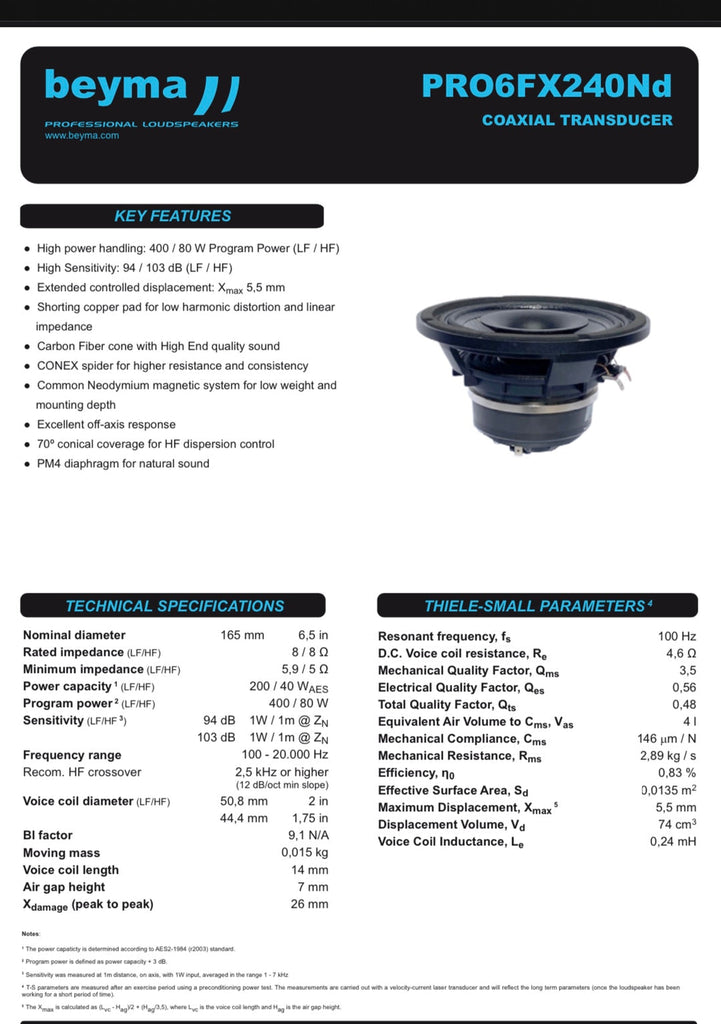

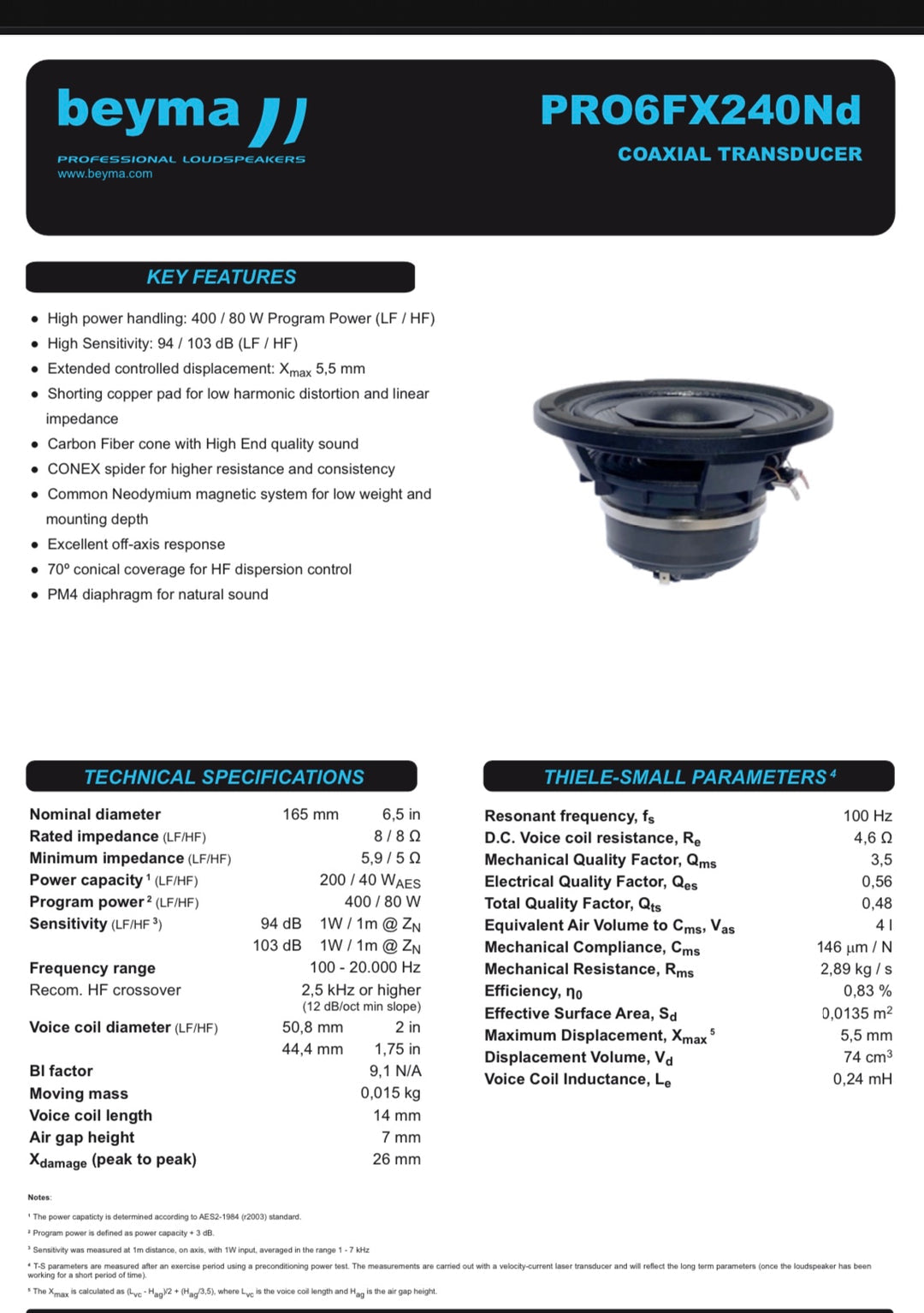

Specifications |
|
|
Nominal Basket Diameter |
6.5" / 165mm |
|
Impedance |
8 ohms |
|
Low Frequency AES Power Rating |
200 Watts |
| Low Frequency Program Power | 400 Watts |
| High Frequency AES Power Rating | 40 Watts |
| High Frequency Program Power | 80 Watts |
|
Frequency Response |
100Hz - 20kHz |
|
High Frequency Sensitivity (1W/1m) |
103dB |
| Low Frequency Sensitivity (1W/1m) | 94dB |
|
LF Voice Coil Diameter |
2" / 50.8mm |
| HF Voice Coil Diameter | 1.75" / 44.4mm |
| Recom. Crossover Frequency | 2.5kHz or higher @ 12dB/oct. |
| Voice Coil Length | 14 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 26 mm |
| BL Factor | 9.1 N/A |
|
Mounting Information |
|
| Overall Diameter | 6.9" / 174mm |
| Bolt Circle Diameter | 6.2" / 158mm |
| Baffle Cutout Diameter | 5.71" / 145.1mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.02 ft3 / .55 Liters |
| Overall Depth | 4.0" / 103.1mm |
| Net Weight | 4.2 lb. / 1.9 kg. |
| Shipping Weight | 4.6 lb. / 2.1 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Carbon Fiber |
| Surround | Two Roll Treated Cloth |
| Voice Coil | Aluminum |
| Spider | Conex |
| Magnet | Neodymium |
|
High Frequency Tweeter |
|
| Diaphragm | PM-4 |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 4.6 ohms |
| Coil Inductance (Le) | .24 mH |
| Mechanical Q (Qms) | 3.5 |
| Electrical Factor (Qes) | .56 |
| Total Q (Qts) | .48 |
| Comp. Equivalent Vol. (Vas) | .14 ft3 / 4 Liters |
| Voice Coil Overhang (Xmax) | 5.5 mm |
| Diaphragm Mass (Mms) | 15 Grams |
| Surface Area of Cone (Sd)m2 | 0.0135m2 |
| Reference Efficiency | .83% |
| Displacement Volume (Vd) | 74 cm3 |
|
|
|
|
|
|
