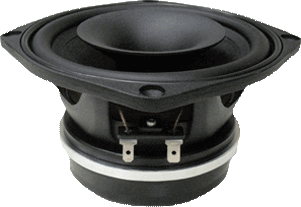

Beyma - Coaxial Speaker - 5" COAXIAL SPEAKER - 5CX200ND/N
Beyma
$299.90
SOLD IN SINGLES
- THE NEW BEYMA 5CX200ND/N COAXIAL SPEAKER HAS A 5" CAST FRAME & 1" EXIT HIGH FREQUENCY COMPRESSION DRIVER
- HANDLES 150 WATTS AES & 300 WATTS PROGRAM W/ A FREQUENCY RANGE FROM 75HZ TO 20KHZ
- FEATURES A DEMODULATION RING FOR LOWER DISTORTION & A LIGHTWEIGHT NEODYMIUM MAGNET THAT WEIGHS ONLY 3.53 lbs.
- DESIGNED WITH EXCLUSIVE BEYMA MMS TECHNOLOGY & CONEX SPIDER FOR HIGHER CONSISTENCY
- EXCELLENT OFF-AXIS RESPONSE OF 70º CONICAL DISPERSION
- CONCENTRIC MOUNTING REDUCES PHASE PROBLEMS & PROVIDES A SINGLE POINT SOURCE
- FOR ALL HIGH QUALITY SOUND SINGLE POINT SOURCE APPLICATIONS INCLUDING HOUSE OF WORSHIP, STUDIO MONITORS, HOME THEATER SYSTEMS, MOVIE THEATERS, SMALL PA SYSTEMS, ETC.
|
THE NEW BEYMA 5CX200ND/N COAXIAL SPEAKER SOUNDS VERY SMOOTH AND HAS AN EXCELLENT OFF AXIS RESPONSE! |
|
|
NEW BEYMA 5CX200Nd/N |
|
|
Item Price: $299.95 |
|
|
COAXIAL MODEL |
5CX200Nd/N |
|
Specifications |
|
|
Nominal Basket Diameter |
5" / 125mm |
|
Impedance |
8 ohms |
|
AES Power Rating (LF/HF) |
150 Watts / 40 Watts |
| Program Power (LF/HF) | 300 Watts / 80 Watts |
|
Frequency Response |
75Hz - 20kHz |
|
High Frequency Sensitivity (1W/1m) |
102dB |
| Low Frequency Sensitivity (1W/1m) | 92.5dB |
|
Voice Coil Diameter |
1.5" / 38.5mm |
| Recom. Enclosure Volume | .35-.71 ft3 / 10-20 Liters |
| Voice Coil Length | 14 mm |
| Air Gap Height | 6 mm |
| X Damage (peak to peak) | 19 mm |
| BL Factor | 7.32 N/A |
|
Mounting Information |
|
| Overall Diameter | 6.1" / 155mm |
| Bolt Circle Diameter | 5.57" / 141.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 4.69" / 119.2mm |
| - Rear Mount | 4.69" / 119.2mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.02 ft3 / .5 Liters |
| Overall Depth | 3.74" / 94.9mm |
| Net Weight | 3.53 lb. / 1.6 kg. |
| Shipping Weight | 3.68 lb. / 1.67 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Paper |
| Surround | Santoprene |
| Spider | Conex |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
High Frequency Tweeter |
|
| Diaphragm | Polyester |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 75 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 10.04 |
| Electrical Factor (Qes) | .28 |
| Total Q (Qts) | .28 |
| Comp. Equivalent Vol. (Vas) | .32 ft3 / 9.07 Liters |
| Voice Coil Overhang (Xmax) | 5.7 mm |
| Surface Area of Cone (Sd)m2 | 0.0095m2 |
| Diaphragm Mass (Mms) | 6 Grams |
| Reference Efficiency | 1.3% |
| Displacement Volume (Vd) | 48.1 cm3 |
|
Frequency Response & Distortion Curves |
|
|
Impedance Curve |
|
|
Off-Axis Frequency Response |
|
|
Mounting Dimensions |
|
