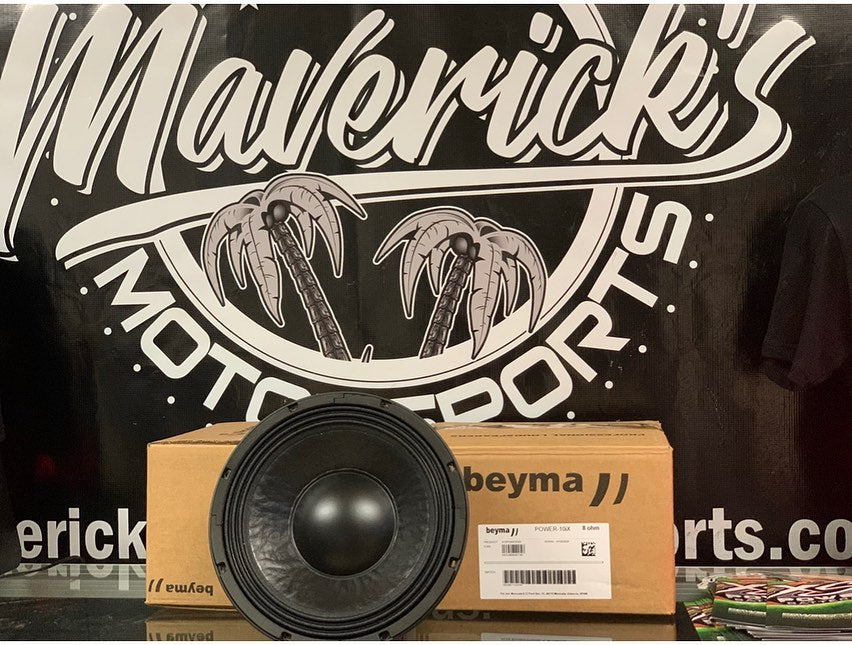

Beyma - Power 10iX - 10” Mid woofer - LOW FREQUENCY SPEAKER
Beyma
$379.94
BEYMA POWER 10iX IS A HIGH POWER 10" SPEAKER THAT HANDLES 500 WATTS AES & 1,000 WATTS PROGRAM
•FEATURES A RUBBER SURROUND, 3" VOICE COIL & A HIGH XMAX OF 13.0MM
•FREQUENCY RANGE FROM 40HZ TO 3.3KHZ
•DELIVERS A POWERFUL DEEP SMOOTH TIGHT BASS WITH GOOD MID-BASS
•49MM PEAK TO PEAK X-DAMAGE
•WORKS WELL AS A 10" SPEAKER FOR USE IN MOTORCYCLE BAGS, BASS GUITAR CABINETS, ETC
•AVAILABLE IN 8 OHMS. 4 OHMS WILL BE AVAILABLE IN MID YEAR 2021
|
Specifications |
|
|
Nominal Basket Diameter |
10" / 250mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
500 Watts |
| Program Power | 1,000 Watts |
|
Frequency Response |
40Hz - 3.3kHz |
|
Sensitivity (1W/1m) |
90dB |
|
Voice Coil Diameter |
3" / 76.2mm |
| Voice Coil Length | 30 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 49 mm |
| BL Factor | 19 N/A |
|
Mounting Information |
|
| Overall Diameter | 10.3" / 261mm |
| Bolt Circle Diameter | 9.6" / 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9" / 228mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 5.2" / 133mm |
| Net Weight | 18.3 lb. / 6.8 kg. |
| Shipping Weight | 16 lb. / 7.25 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Rubber |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 41 Hz |
| Impedance (Re) | 6.8 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 8.1 |
| Electrical Factor (Qes) | .46 |
| Total Q (Qts) | .43 |
| Comp. Equivelant Vol. (Vas) | 1.15 ft3 / 32.5 Liters |
| Voice Coil Overhang (Xmax) | 13.0 mm |
| Moving Mass (Mms) | 95 Grams |
| Surface Area of Cone (Sd)m2 | 0.038 |
| Reference Efficiency | .5% |
| Displacement Volume (Vd) | 505 cm3 |
| Frequency Response & Distortion Curves | |
|
Mounting Dimensions |
|
