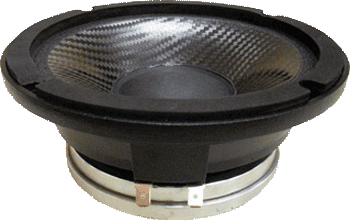

BEYMA 6MCF200Nd - 6.5" CLOSED BACK CARBON FIBER NEODYMIUM MIDRANGE SPEAKER - (SINGLE)
Beyma
$279.90
*Sold in singles
- NEW BEYMA 6MCF200Nd 6.5" MIDRANGE SPEAKER THAT HANDLES A POWERFUL 200 WATTS AES & 400 WATTS PROGRAM POWER HANDLING
- FEATURES A CLOSED BACK CAST ALUMINUM FRAME, LIGHTWEIGHT NEODYMIUM MAGNET & STRONG CARBON FIBER LOADED CONE
- COPPER SHORTING RING FOR A FLATTER MORE EXTENDED RESPONSE AND LOWER DISTORTION
- 2" ALUMINUM VOICE COIL & LIGHTWEIGHT NEODYMIUM MAGNET
- VERY LOW HARMONIC DISTORTION W/ AN EXTREMELY LINEAR FREQUENCY RESPONSE
- DESIGNED FOR THE HIGHEST QUALITY MIDRANGE SPEAKER SYSTEMS INCLUDING LINE ARRAY SYSTEMS
|
WOOFER MODEL - 6MCF200Nd |
|
|
Specifications |
|
|
Nominal Basket Diameter |
6.5" / 165mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
200 Watts |
| Program Power | 400 Watts |
|
Frequency Response |
400Hz - 12.0KHz |
|
Sensitivity (1W/1m) |
97dB |
|
Voice Coil Diameter |
2" / 51.7mm |
| Voice Coil Length | 9.2 mm |
| Air Gap Height | 9 mm |
| Mounting Information | |
| Overall Diameter | 6.85" / 174mm |
| Bolt Circle Diameter | 6.22" / 158mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.75" / 146mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.026 ft3 / .75 Liters |
| Overall Depth | 2.95" / 75mm |
| Net Weight | 5.07 lb. / 2.3 kg. |
| Shipping Weight | 5.95 lb. / 2.7 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Carbon Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 410 Hz |
| Impedance (Re) | 6.3 ohms |
| Coil Inductance (Le) | .25 mH |
| Mechanical Q (Qms) | 5.9 |
| Electrical Factor (Qes) | .72 |
| Total Q (Qts) | .64 |
| Comp. Equivalent Vol. (Vas) | .88 ft3 / 25 Liters |
| Voice Coil Overhang (Xmax) | 2.5 mm |
| Moving Mass (Mms) | 16 Grams |
| BL Factor (T-M) | 19.2 |
| Reference Efficiency | 2.4% |
| Displacement Volume | 35 cm3 |
