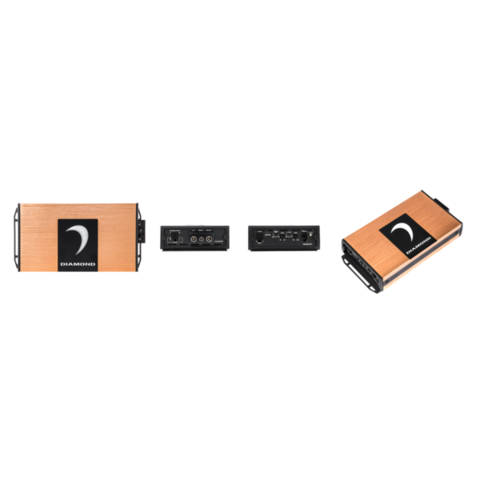

Amplifiers - Diamond Audio - Micro4v2

600 WRMS 4-Channel Amplifier

Newly redesigned V2 Micro amplifiers have loads of new improvements on an already great design.

• Advanced Active Crossover Options

• Selectable Hi-Pass or Low-Pass Crossover When Bridging

• Bluetooth Expansion Port

• Selectable 3 Option Auto Turn-On Mode Circuit

 RMS Power Rating:

• • Max Power: 600 W RMS

  • RMS Power (2Ω): 150W x 4

  • RMS Power (4Ω): 80W x 4

  • Bridged(mono 1Ω): N/A

  • Bridged(mono 2Ω): N/A

  • Bridged(mono 4Ω): 300 W x 2

• Type

  • Topology: Full Range Class D

• Power Supply

  • Power Supply: Full PWM

  • Power Supply Threshold: 10.0VDC-17.0VDC

  • Idle Current: (0.7A)

• Distortion

  • THD 4(1KH@4Ω) : 0.5%

  • S/N Ratio(A weighted@1W): -85dBA

  • S/N Ratio(A weighted@FP): -101.1 dBA

• Input Sensitivity

  • Low Input Level: 200mV-5.0V

  • Hight Input Level: N/A

• Input Impedance

  • Low Input Level: 20 KΩ

  • AUX Input Level: 20 KΩ

• Output Stage

  • Output Impedance: 0.018Ω

  • Damping Factor(50Hz@4Ω): >70

  • Bandwidth(-3dB): 10Hz-35 Hz

• Crossover(-12dB/Oct)

  • Variable High-Pass: 25Hz-250Hz(front only)

  • Variable Low-Pass: 50Hz-200Hz

  • Variable Sub-Pass: N/A

• Fuse Ratings

  • ATC: 40A

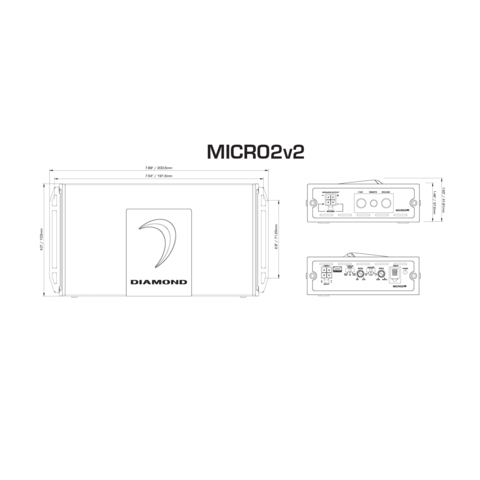

• Dimensions

  • Lenght x Width x Height(Inches): 8.39" x 4.05" x 1.38"

  • Lenght x Width x Height(mm): 213.1 x 102.9 x 35
