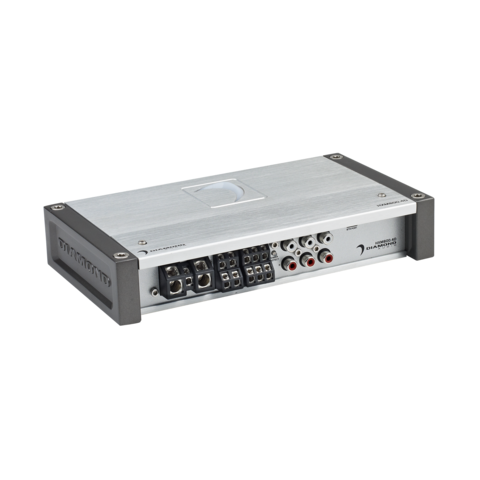

Amplifiers - Diamond Audio - HXM800.4D Motorsport
Amplifiers - Diamond Audio - HXM800.4D Motorsport

Amplifiers - Diamond Audio - HXM800.4D Motorsport

Regular price
$579.99
Sale price
$579.99

800 WRMS - 4 Channel Amplifier

  • Ultra-compact, high density aluminum alloy chassis provides superior thermal stability

  •         Four layer, glass epoxy circuit board for enhanced performance and reliability

  •         Circuit board conformal coated (water resistant) for marine applications

  •         Full Range Class D amplifier technology

  •         Bridgeable for high power operation

  •         Balanced differential inputs for superior noise rejection

  •         Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input

  •         Input selector switch (2CH/4CH)

  •         Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)

  •         Fully variable,12 dB per octave, electronic crossover

  •         Full range, line level outputs provided to send signal to another amplifier

  •         Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller

  •         Top mounted controls for convenient adjustment

  •         Integrated soft clip light for quick system set-up

  •         Illuminated logo

                              RMS Power Rating

                              • RMS Power (2Ω):  200 W X 4

                              • RMS Power (4Ω):  120 W X 4

                              • Bridged (mono 1Ω): N/A

                              • Bridged (mono 2Ω): N/A

                              • Bridged (mono 4Ω): 400W X 2 (4Ω ONLY)

                              Type

                              • Topology: Full Range Class D

                              Power Supply

                              • Power Supply: Full PWM

                              • Power Supply Threshold: 10.0VDC-17.0VDC

                              • Idle Current: (0.7A)

                              Distortion

                              • THD (1KHz@4Ω) : 0.07%

                              • S/N Ratio(A weighted@1W): -77.4dBA

                              • S/N Ratio(A weighted@FP): -97.4dBA

                              Input Sensitivity

                              • Low Input Level: 0.2mV-10.0V

                              • High Input Level: Yes - Up to 25W RMS

                              Input Impedance

                              • Low Input Level: 22 KΩ

                              • High Input Level:

                              Output Stage

                              • Output Impedance: 0.047Ω

                              • Damping Factor (50Hz@4Ω): >250

                              • Bandwidth (-3dB): 10Hz-35KHz

                              Crossover(@12dB per Octave)

                              • Variable High-Pass: 40Hz - 400Hz

                              • Variable Low-Pass: 40Hz - 400Hz

                              • Variable Sub-Sonic: N/A

                              Recommended Fuse Rating

                              • ATC: N/A

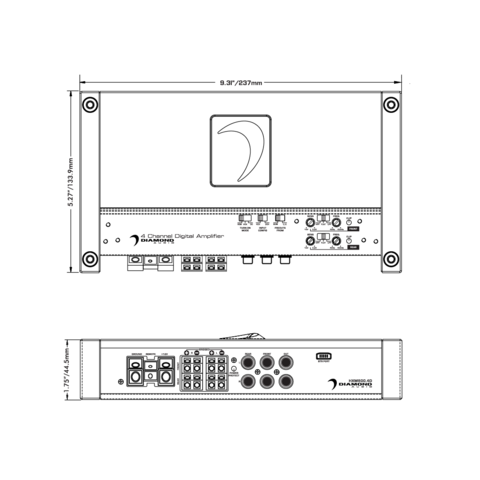

                              Dimensions

                              • Length x Width x Height (Inches): 9.3 x 5.27 x 1.75

                              • Length x Width x Height (mm): 237 x 133.9 x 44.5
