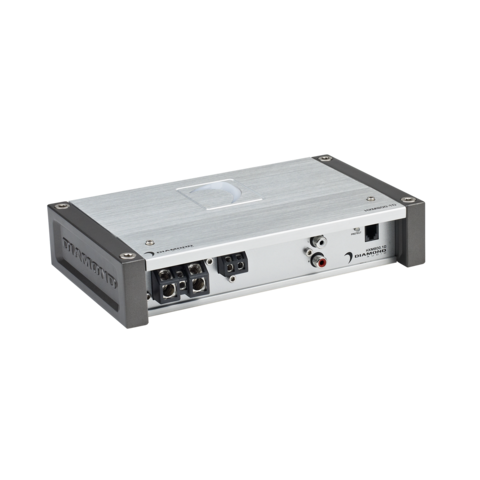

Amplifiers - Diamond Audio - HXM800.1D Motorsport
Amplifiers - Diamond Audio - HXM800.1D Motorsport

Amplifiers - Diamond Audio - HXM800.1D Motorsport

Regular price
Sale price

800 WRMS - 1 Channel Amplifier

  • Ultra-compact, high density aluminum alloy chassis provides superior thermal stability

  •         Four layer, glass epoxy circuit board for enhanced performance and reliability

  •         Circuit board conformal coated (water resistant) for marine applications

  •         Full Range Class D amplifier technology

  •         Balanced differential inputs for superior noise rejection

  •         Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input

  •         Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)

  •         Fully variable, 12dB per octave, electronic crossover

  •         Variable 18dB per octave sub-sonic filter

  •         Phase adjustable from 0 to 180 degrees

  •         Adjustable Bass EQ (45Hz: 1dB to +12dB) / remote level control included

  •         Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller

  •         Top mounted controls for convenient adjustment

  •         Integrated soft clip light for quick system set-up

  •         Illuminated logo

RMS Power Rating

  • RMS Power (1Ω):   800 W X 1

  • RMS Power (2Ω):  550 W X 1

  • RMS Power (4Ω): 350 W X 1



  • Topology: MonoBlock Class D

Power Supply

  • Power Supply: Full PWM

  • Power Supply Threshold: 10.0VDC-17.0VDC

  • Idle Current: (0.7A)


  • THD (1KHz@4Ω) : 0.05%

  • S/N Ratio (A weighted@1W): -77.2dBA

  • S/N Ratio (A weighted@FP): -98.9dBA

Input Sensitivity

  • Low Input Level: .2mV-10.0V

  • High Input Level: Yes - Up to 25W RMS

Input Impedance

  • Low Input Level: 22 KΩ

  • High Input Level: 22 KΩ

Output Stage

  • Output Impedance: 0.047Ω

  • Damping Factor (50Hz@4Ω): >250

  • Bandwidth (-3dB): 10Hz-350Hz

Crossover (-12dB per Octave)

  • Variable High-Pass: N/A

  • Variable Low-Pass: 30Hz - 300Hz

  • Variable Sub-Sonic: 10Hz - 55Hz

Recommended Fuse Rating

  • ATC: N/A

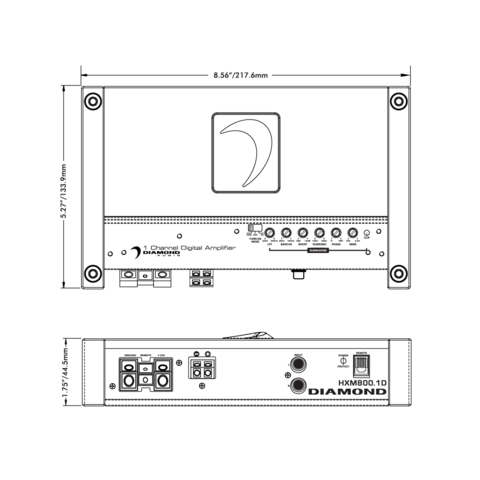

  • Length x Width x Height (Inches): 8.56 x 5.27 x 1.75

  • Length x Width x Height (mm): 297.6 x 133.9 x 44.5
