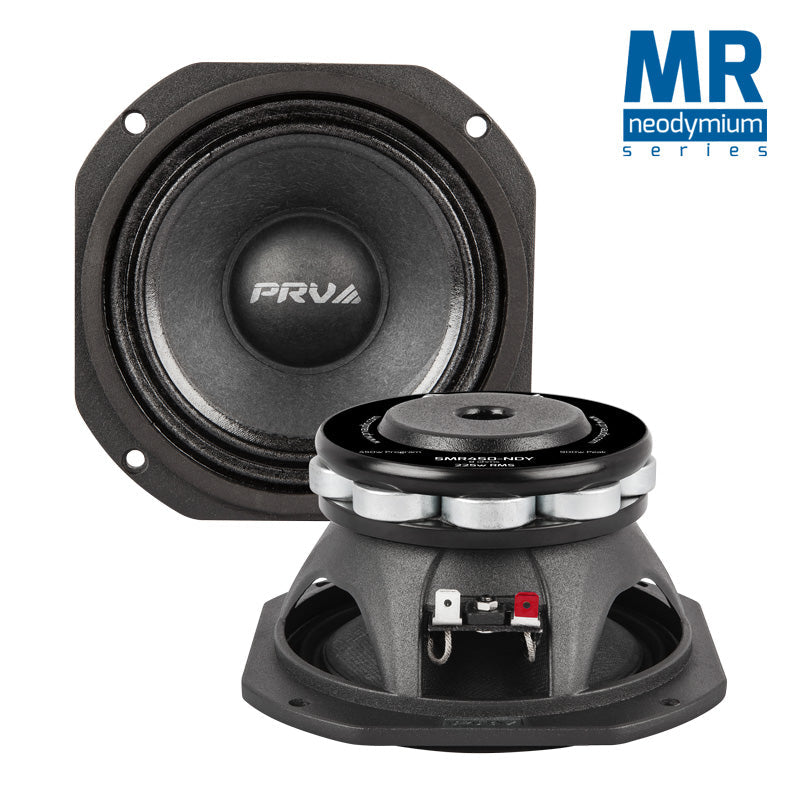

PRV 5MR450-NDY - 4

The PRV Audio Pro Audio Loudspeaker, 5MR450-NDY midrange woofer offers outstanding durability and a smooth midrange response through 16kHz.

This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even the home studio monitors. It is a great option for three way cabinets requiring additional midrange support.

The high end neodymium magnet assembly was chosen to increase sensitivity and power handling. This neodymium is attached to a sturdy reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment.

Its light weight of only 1.21 lbs helps keep your enclosures light and is a great use for use for car doors and installers looking for high SPL midrange and upper midrange responses.

Technical Details

GENERAL SPECIFICATIONS

Nominal Diameter	5″ (127 mm)
Nominal impedance	8 Ohms
Rated AES Power Handling (RMS)	225 Watts
Program Power	450 Watts
Sensitivity 2.83V at 1m	94 dB
Recommended Hi Pass Crossover* *For Full Power Handling	290 Hz** **12db Per Octave Crossover
Frequency Response at -10dB	160- 16,000 Hz
Voice Coil Diameter	1.5″ (38.1 mm)
Voice Coil Wire	Copper
Voice Coil Winding Depth	9.8 mm
Former Material	Kapton
Magnetic Gap Depth	5.8 mm
Frame Material	Die Cast Aluminum
