Koso North America - Meters - Gauges - HD-02 | 6 pieces kit (black bezel) | for Harley-Davidson®

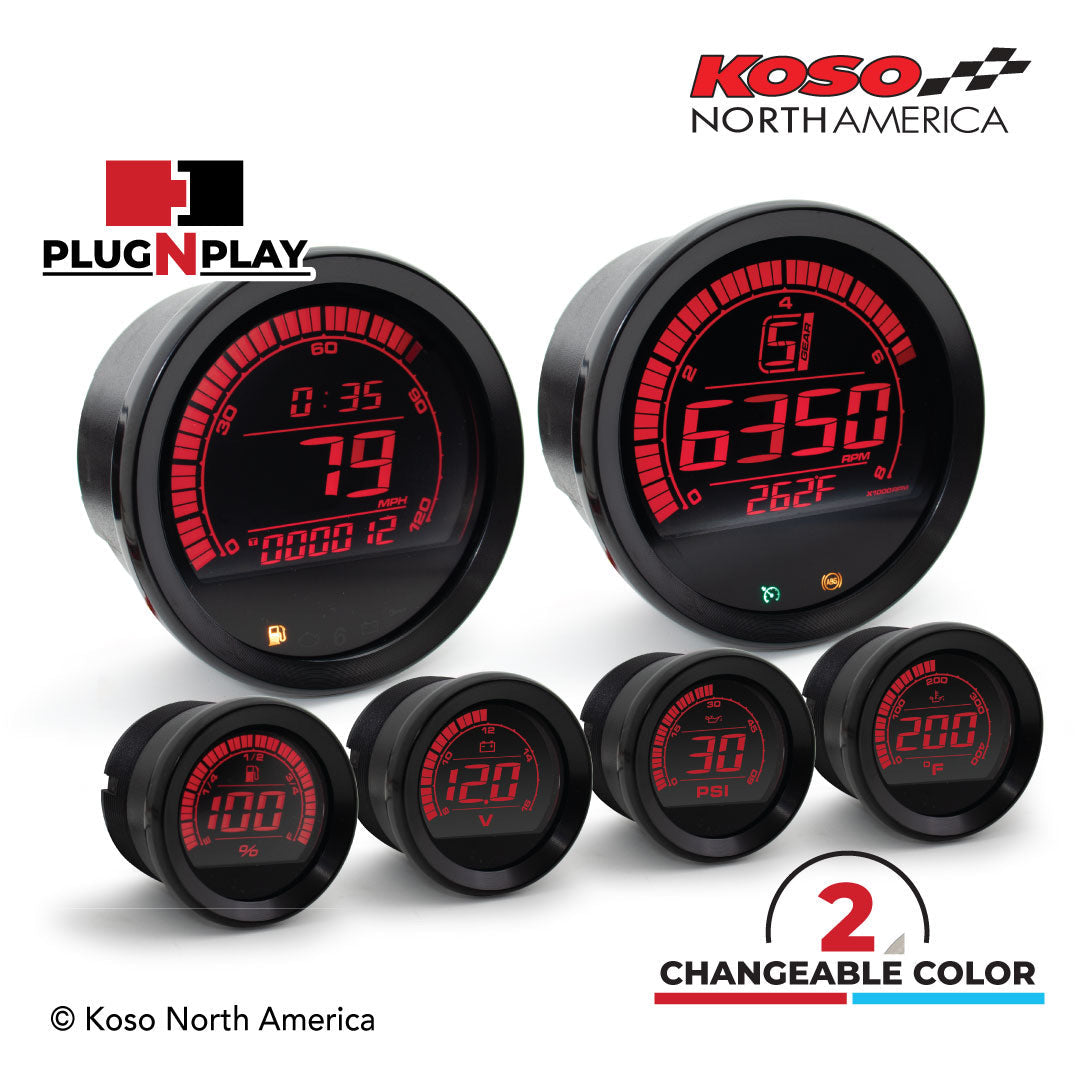

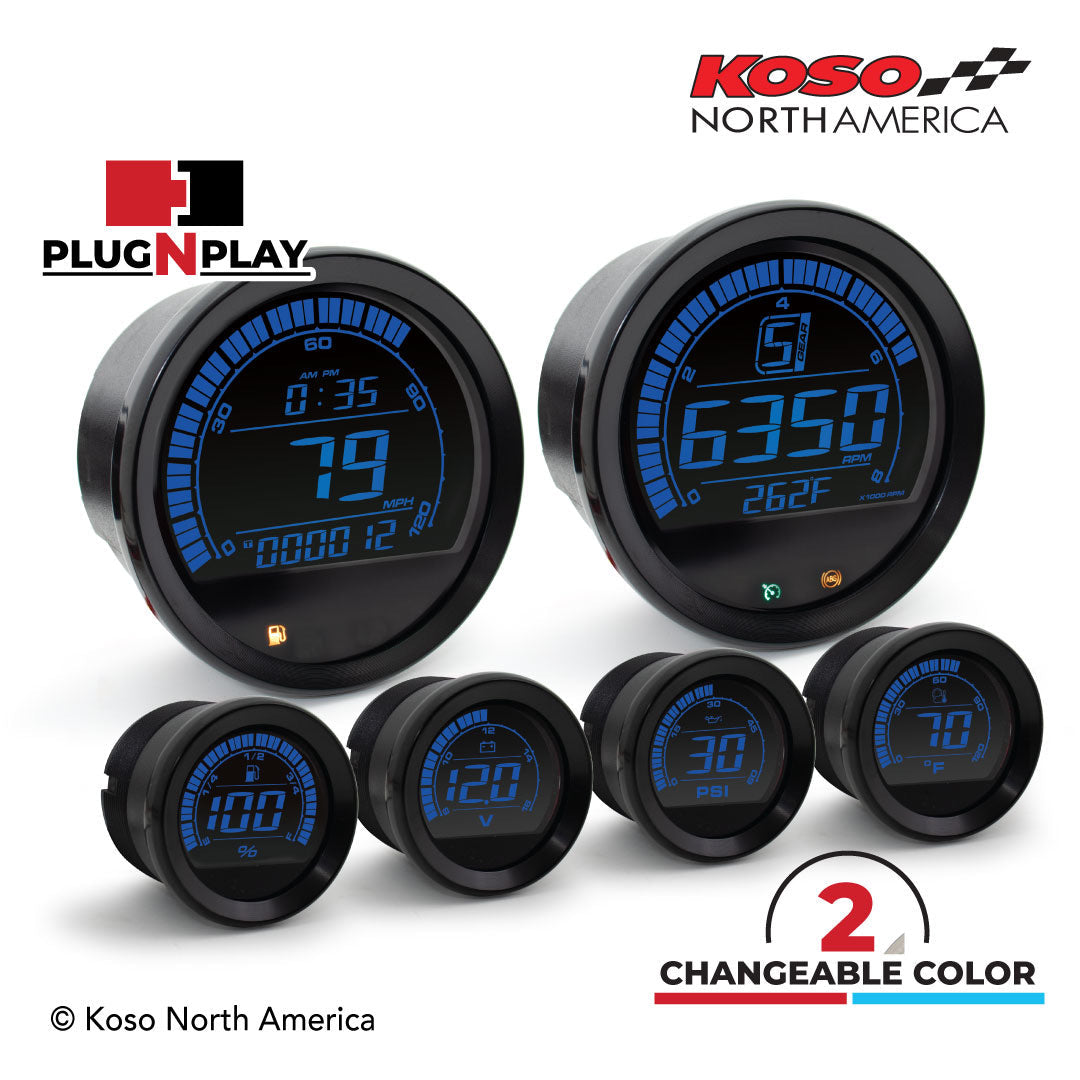

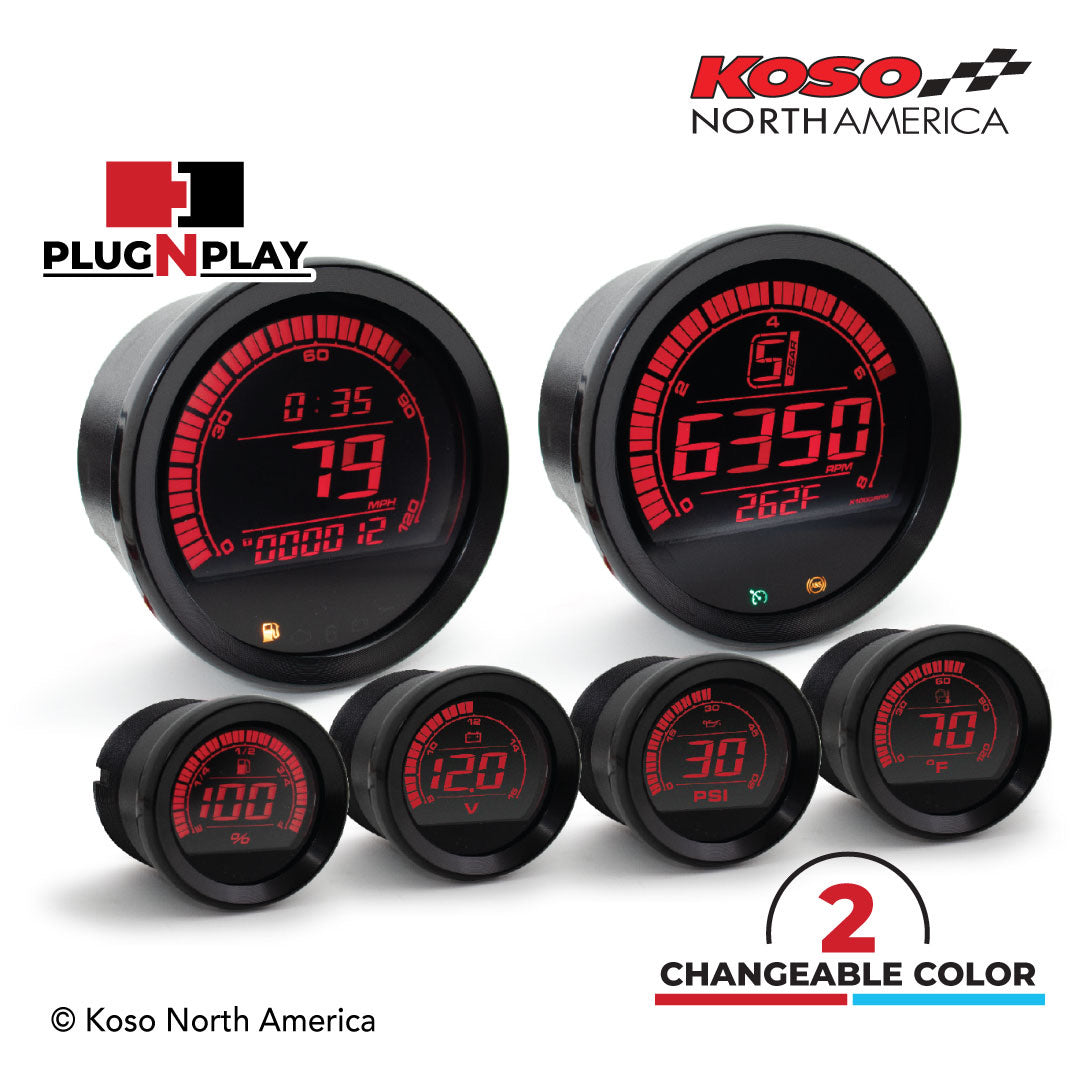

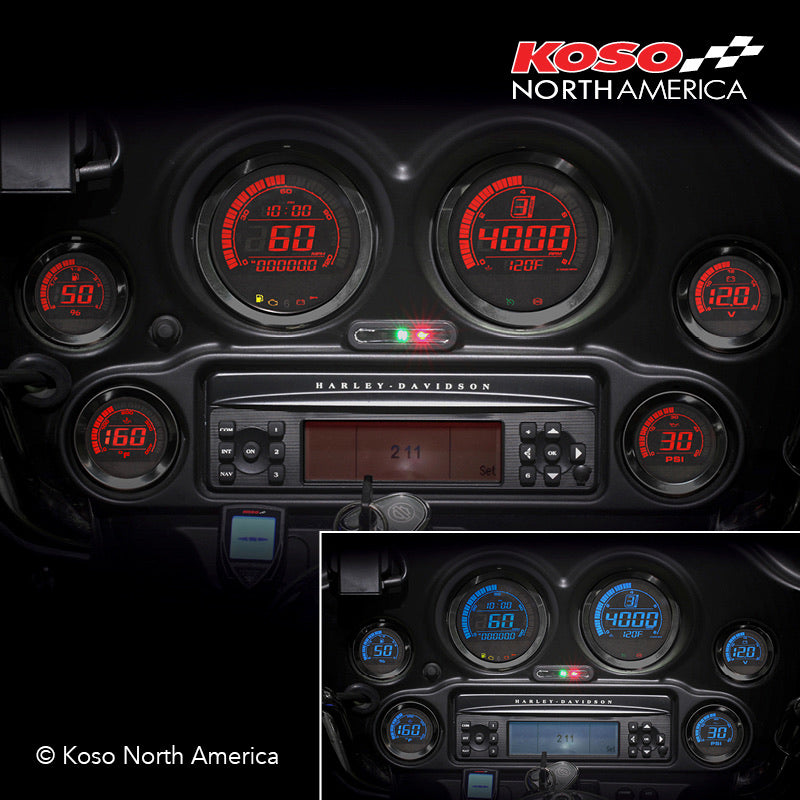

Our R&D department worked hard to create something new and modern for Harleys. The engineers responded by coming up with a complete plug & play system to replace the stock meters. No need to drill holes or to rewire the meters, they will all fit directly in the OEM dash and connectors. Both silver and black bezel kits feature a dual color changeable LCD display (red or blue) for a custom look. The 6 piece kit includes a 4’’ speedometer, 4’’ tachometer with gear position, 2’’ oil pressure meter, 2’’ fuel level meter, a 2’’ volt meter and the choice of a 2’’ ambient temperature meter or 2’’ oil temperature meter. This meter is a great addition to all Harley FLHT, FLHX, and FLTR from 2004 to 2013.
* Fits Harley‑Davidson® FLHT, FLHX & FLTR from 2004 to 2013.
** Gauges can be sold separately **
Specifications
(R= Range U=Unit)

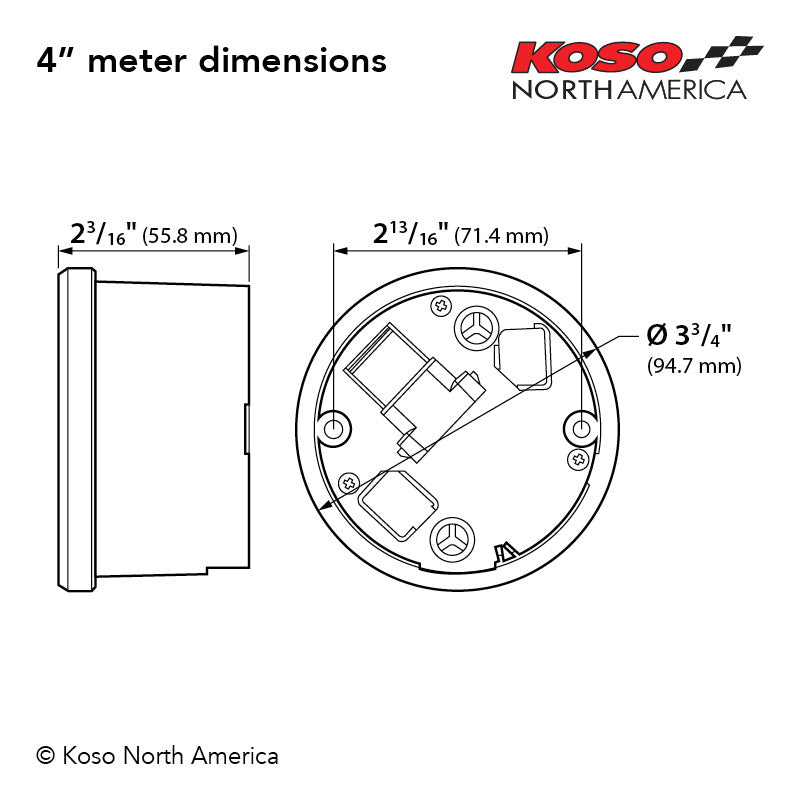

4″ Speedometer
-
Speedometer
R: 0 ~ 225 MPH (0 ~ 360 km/h)
U: 1 MPH or km/h (alternative) -
Speedometer levels
R: 0 ~ 120 MPH (0 ~ 200 km/h)
U: ± 2.5 MPH (± 4.2 km/h) -
Odometer
R: 0 ~ 999,999 miles (km) | U: 1 mile (km) -
Tripmeter A/B
R: 0 ~ 9,999.9 miles (km) | U: 0.1 mile (km) -
Clock
R: 12 H or 24 H format -
Indicator lights
Neutral/ Anti-theft / Check engine / Volt / Low fuel -
Power
DC 12V -
Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C)
4″ Tachometer
-
Digital tachometer
R: 0 ~ 8,000 RPM -
Tachometer levels
R: 0 ~ 8,000 RPM | U: ± 166 RPM -
Engine temperature
14 ~ 255 °F (‑17 ~ 123 °C) -
Gear indicator
N, P, R, 1, 2, 3, 4, 5, 6 -
Indicator lights
Cruise control / ABS -
Power
DC 12V -
Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C

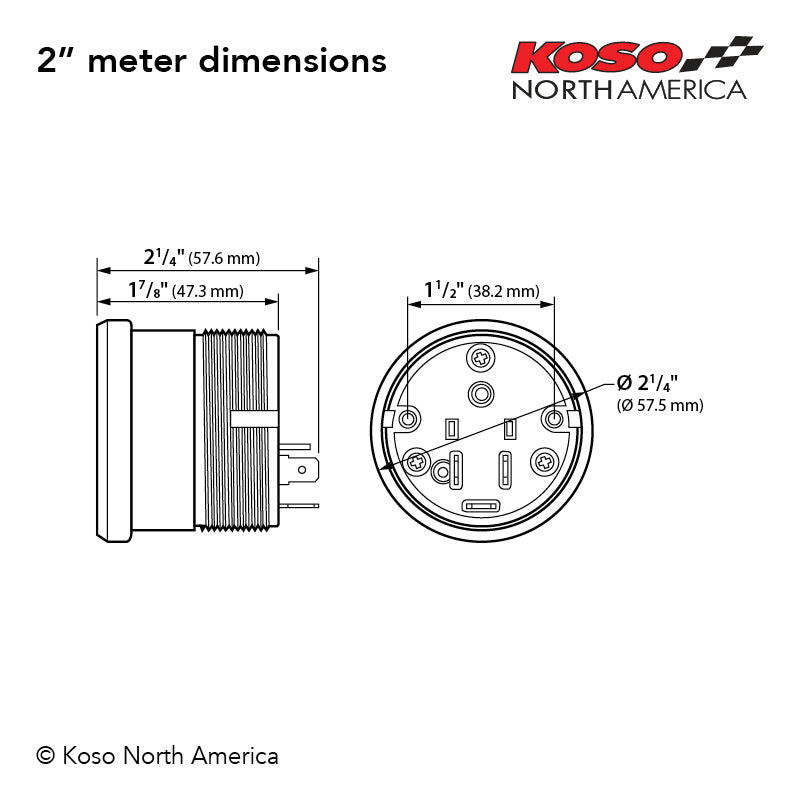

2″ Oil pressure meter
-
Oil pressure indicator
R: 0 ~ 60 PSI | U: 1 PSI -
Oil pressure warning
R: 5 ~ 60 PSI | U: 0.1 PSI -
Power
DC 12V -
Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C)
2″ Fuel level meter
-
Fuel meter
R: 0 ~ 100% | U: 1% -
Power
DC 12V -
Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C)
2″ Volt meter
-
Volt meter
R: DC 8 ~ 16 V | U: DC 1 V -
Power
DC 12V -
Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C)
2″ Ambiant air temp. meter
-
Ambiant air temp. meter
R: 0 ~ 120 °F | U: 1 °F -
Ambiant air temp. warning
R: 15 ~ 65 °F | U: 1 °F - * celsius temperature displayed only when used in the 6 pces kit
-
Power
DC 12V -
Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C)
2″ Oil temp. meter
-
Oil temp. meter
R: 0 ~ 400 °F (32 ~ 204 °C)
U: 1 °F (alternative) -
Oil temp. warning
R: 150 ~ 400 °F (66 ~ 204 °C)
U: 1 °F alternative) -
Power
DC 12V -
Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C)
