Diamond Audio

$779.99

Sorry, this item is out of stock

← Previous Product Next Product →

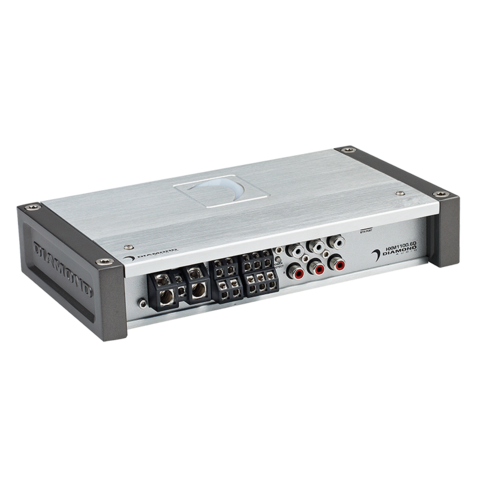

1100 WRMS - 6 Channel Amplifier

  •         Ultra-compact, high density aluminum alloy chassis provides superior thermal stability

  •         Four layer, glass epoxy circuit board for enhanced performance and reliability

  •         Circuit board conformal coated (water resistant) for marine applications

  •         Full Range Class D amplifier technology

  •         Bridgeable for high power operation (CH1+CH2/CH3+CH4/CH5+CH6)

  •         Balanced differential inputs for superior noise rejection

  •         Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input

  •         Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)

  •         Fully variable, 12dB per octave, electronic crossover

  •         Remote level control for Channels 5 and 6 included

  •         Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller

  •         Top mounted controls for convenient adjustment

  •         Integrated soft clip light for quick system set-up

  •         Illuminated logo

                            RMS Power Rating

                            • RMS Power (2Ω):  150 W X 4/250 X 2

                            • RMS Power (4Ω):  90 W X 4/150 X 2

                            • Bridged (mono 1Ω): N/A

                            • Bridged (mono 2Ω): N/A

                            • Bridged (mono 4Ω): 300 W X 2/500 W X 1 (Ch 5/6 Bridged)

                            Type

                            • Topology: Full Range Class D

                            Power Supply

                            • Power Supply: Full PWM

                            • Power Supply Threshold: 10.0VDC-17.0VDC

                            • Idle Current: (0.7A)

                            Distortion

                            • THD (1KHz@4Ω) : 0.03%

                            • S/N Ratio(A weighted@1W): -76.7dBA

                            • S/N Ratio(A weighted@FP): -96.7dBA

                            Input Sensitivity

                            • Low Input Level: 0.2mV-10.0V

                            • High Input Level: Yes - Up to 25W RMS

                            Input Impedance

                            • Low Input Level: 22 KΩ

                            • High Input Level:

                            Output Stage

                            • Output Impedance: 0.051Ω

                            • Damping Factor (50Hz@4Ω): >70

                            • Bandwidth (-3dB): 10Hz-35KHz

                            Crossover(@12dB per Octave)

                            • Variable High-Pass: 40Hz - 400Hz

                            • Variable Low-Pass: 30Hz - 400Hz

                            • Variable Sub-Sonic: N/A

                            Recommended Fuse Rating

                            • ATC: N/A

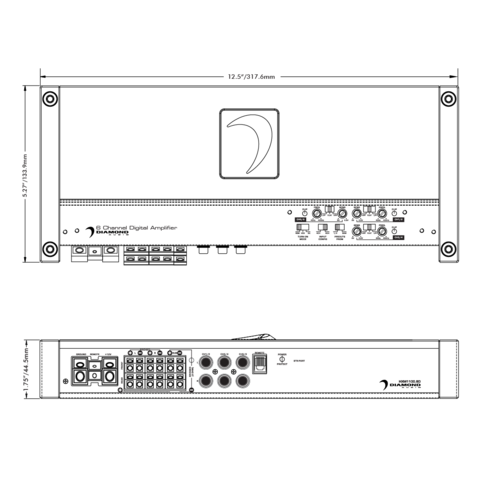

                            Dimensions

                            • Length x Width x Height (Inches): 12.5 x 5.27 x 1.75

                            • Length x Width x Height (mm): 317.6 x 133.9 x 44.5
