  • Euphoria Xpert EXM10SN

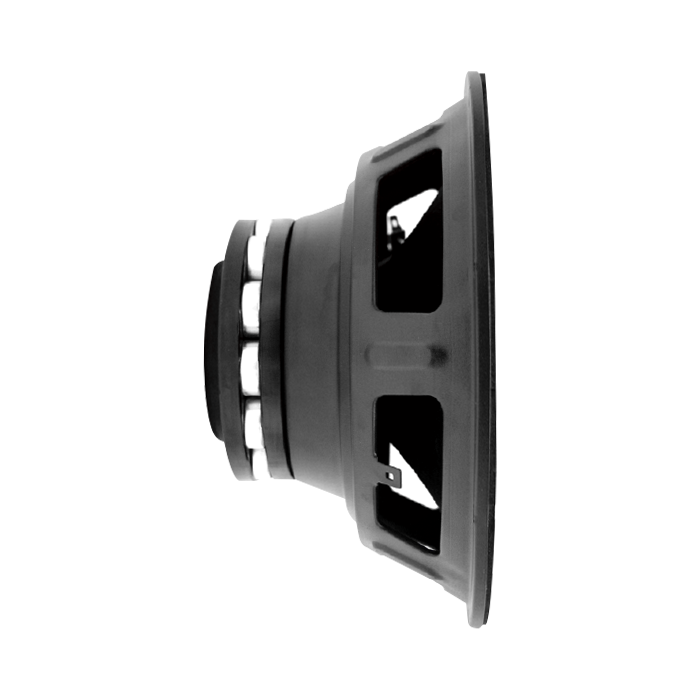

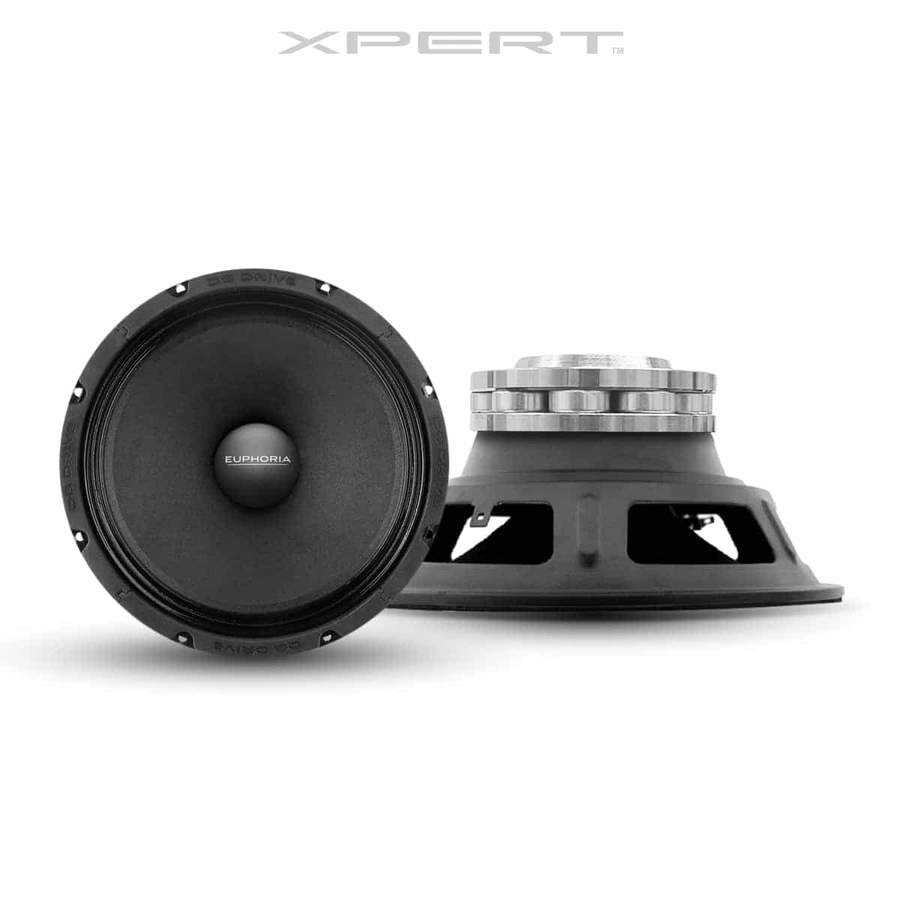

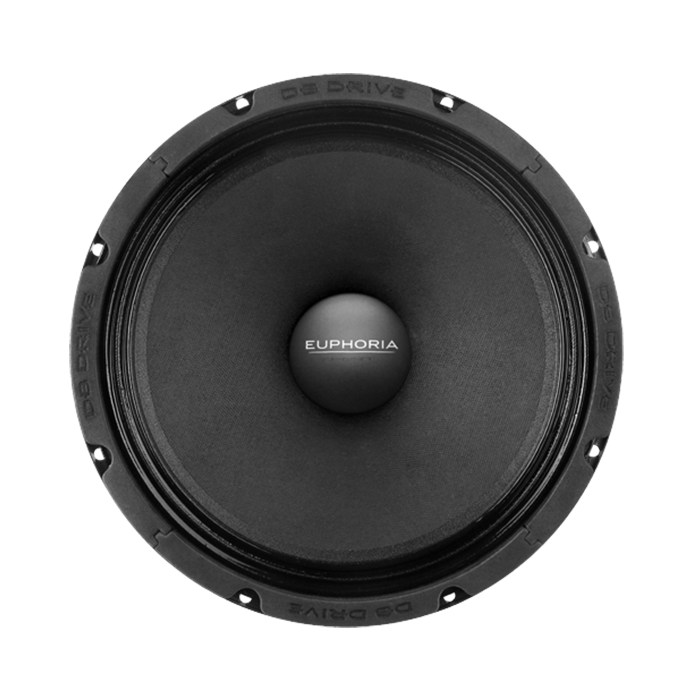

    The EXM10N is a 10" Midrange from our XPERT SERIES line of high fidelity motorsports audio systems. The die cast aluminum basket makes it lightweight yet sturdy enough handle life on and off the road.

    • 2.5″ (63.5mm) Voice Coil
    • Neodymium 12 Piece Radially Equalized Magnet Assembly
    • IP52 Rated Paper Cone With Treated Cloth Surround
    • Heavy Gauge Stamped Steel Basket
    T/S PARAMETERS
    Resonant Frequency (fs) 49.4Hz
    D.C. Voice Coil Resistance (Re) 3.2Ω
    Mechanical Quality Factor (Qms) 2.68
    Electrical Quality Factor (Qes) 0.36
    Total Quality Factor (Qts) 0.32
    Compliance Equivalent Volume (Vas) 46.5L
    Mechanical Compliance (Cms) 0.27 mm/N
    Efficiency (1W/1M) 101.8 dB



    ADDITIONAL SPECS
    Nominal Impedance 4Ω
    Power Handling 400 Watts
    Dynamic Wattage 800 Watts
    Sensitivity (1w/1m) 101.8 dB
    Voice Coil Diameter 2.5″ (63mm)



    DIMENSIONS
    Mounting Depth: 4.57″ (116mm)
    Mounting Diameter: 9.29″ (236mm)
