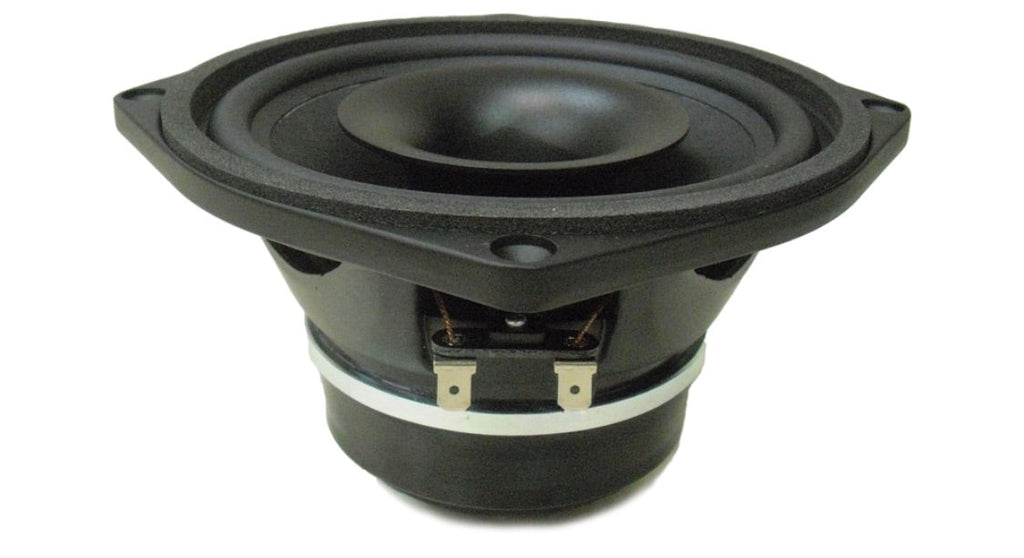

Beyma - Coaxial Speaker - 6.5” - 6CX200ND/N

Beyma - Coaxial Speaker - 6.5” - 6CX200ND/N

Beyma

$398.00

SOLD IN SINGLES

Key Features


● 200 WAES power handling capacity for LF unit
● 40 WAES power handling capacity for HF unit
● High sensitivity: 92 dB (LF) and 103 dB (HF)
● Low resonant frequency: 65 Hz
● Extended controlled displacement: XMAX ± 5,5 mm
● Extended mechanical displacement capability:
Xdamage ± 26 mm
● CONEX spider
● Designed with MMSS technology
● Common neodymium magnet system for both units
● Low weight and mounting depth
● Excellent off-axis response
● 70o conical dispersion


TECHNICAL SPECIFICATIONS



Nominal impedance LF/HF
8/8 ohm
HF diaphragm ref.
5MSMC2258
LF Recone kit ref.
5M6CX2ND8
Nominal diameter
165 mm 6.5 in
Minimum impedance LF/HF
5.4/5 ohm
Frequency range
65-20000 Hz
Power capacity LF/HF
200/40 W AES
Program power LF/HF
400 / 80 w
Sensitivity LF/HF
92/103 2.83 @ 1 m @ 2π
Recom. crossover frequency
2.5 kHz or higher (12 dB/oct. min slope)
Voice coil diameter LF/HF
50.8/44.4 mm - 2/1.75 in
Dispersion (conical)
70º
BL factor
10.52 N/A
Moving mass
0.016 kg
Winding length
14 mm
Xdamage pp
26 mm

PARAMETERS THIELE & SMALL

Fs
65 Hz
Re
5 ohm
Qms
3.95
Qes
0.29
Qts
0.27
Vas
9.4 l
Cms
366 µm / N
Rms
1.67 kg/s
Efficiency %
0.86
Sd
0.0135 m²
Xmax
5.5 mm
Vd
68.85 cm³
Le @1 kHz
0.2 mH

CONSTRUCTION DETAILS

Net weight
1.98 kg 4.38 lb
Total weight
2.2 kg 4.85 lb
Magnet
Neodymium
